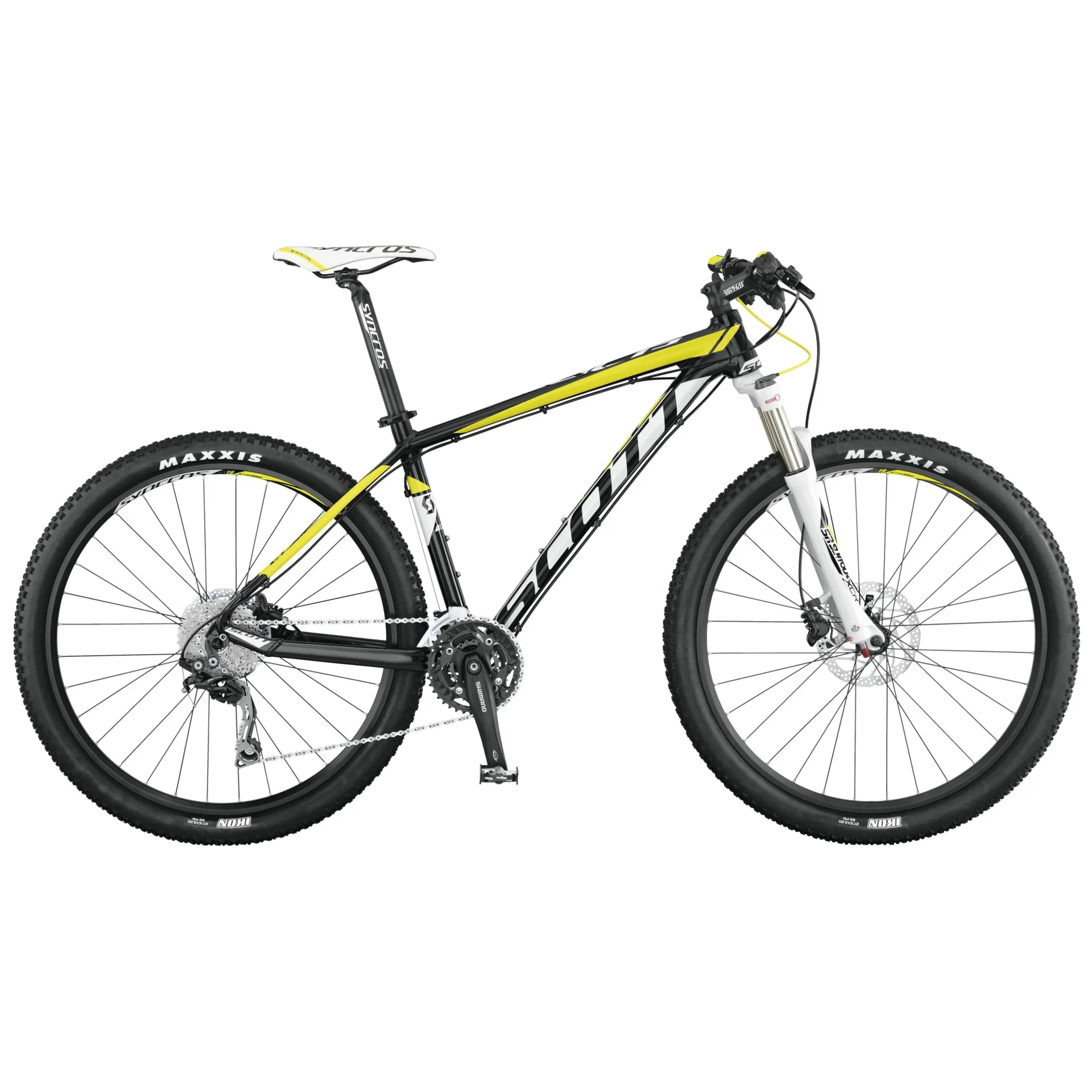

Scott Scale 770 Alloy Mountain Bike

Season:2015

Brand:Scott

Code:VAR238224

The SCOTT Scale 770 features a super light Alloy Frame.



The series comes fully equipped with a Suntour fork, along with Remote Lockout technology to allow for multiple travel settings to adjust to riding conditions.



With the same geometry as its Carbon siblings, this is a durable and affordable hardtail designed for world-class speed.





Frame
Scale Alloy 6061 Custom Butted Superlight Tubing / Tapered Headtube / Bridgeless Seatstays

Travel
100mm

Fork
Suntour XCR-RL-R / Coil Spring / 1-1/8" steerer / Remote Lockout / Rebound Adjustment / 100mm Travel
Remote System
Suntour Remote

Headset
VP-J203SER 1.5" - 1-1/8" Reducer Semi Integrated

Rear Derailleur
Shimano Deore RD-M610 SGS Shadow Type, 30 Speed

Front Derailleur
Shimano Deore FD-M610

Shifters
Shimano Deore SL-M610 Rapidfire Plus, 2-way Release

Brake Levers
Shimano BL-M396 Hydraulic Disc

Brakes
Shimano BL-M396 Hydraulic Disc / 180mmF/160mmR

Crankset
Shimano FC-M523 Octalink / 40x30x22 T

BB-Set
Shimano Octalink

Handlebar
Syncros TBar 6061 Alloy 700mm

Handlebar Stem
Syncros  6061 Alloy

Pedals
Wellgo M-21

Seatpost
Syncros Alloy, 31.6mm

Seat
Syncros MTB Race

Hub (Front)
Formula CL-51 Disc

Hub (Rear)
Shimano FH-RM 35-CL Disc

Chain
KMC X10

Cassette
Shimano CS-HG50-10 11-36 T

Spokes
14 G Stainless black

Rims
Syncros GX-19, 32H

Tyres
Maxxis IKON, 27.5 × 2.2
Sizing Information

            XS   S   M   L   XL
A head tube angle         69.0 °   69.0 °   69.0 °   69.0 °   69.0 °
B head tube length         100.0 mm 100.0 mm 100.0 mm 115.0 mm 125.0 mm
C top tube horizontal         560.0 mm 575.0 mm 600.0 mm 625.0 mm 650.0 mm
D standover height         720.0 mm 728.9 mm 758.0 mm 786.8 mm 819.7 mm
E BB offset         -44.0 mm -44.0 mm -44.0 mm -44.0 mm -44.0 mm
F BB height         307.5 mm 307.5 mm 307.5 mm 307.5 mm 307.5 mm
G wheel base         1,060.2 mm 1,075.2 mm 1,100.2 mm 1,126.3 mm 1,152.0 mm
H BB center to toptube center         313.4 mm 315.8 mm 369.3 mm 409.3 mm 458.2 mm
I BB center to top of seattube         355.0 mm 390.0 mm 440.0 mm 480.0 mm 530.0 mm
J seat angle         73.0 °   73.0 °   73.0 °   73.0 °   73.0 °
K chainstay         427.0 mm 427.0 mm 427.0 mm 427.0 mm 427.0 mm
L reach         382.5 mm 398.1 mm 423.1 mm 443.8 mm 466.0 mm
M stack         576.0 mm 578.6 mm 578.6 mm 592.6 mm 601.9 mm
N stem length         60.0 mm 70.0 mm 80.0 mm 90.0 mm 100.0 mm
