What happens to a bike when it has won a couple of World Championships and finished atop the podium in Kona? You make it better, that’s what.

What happens to a bike when it has won a couple of World Championships and finished atop the podium in Kona? You make it better, that’s what.

Scott

Scott Plasma Team Issue Mens TT/Tri Bike

Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

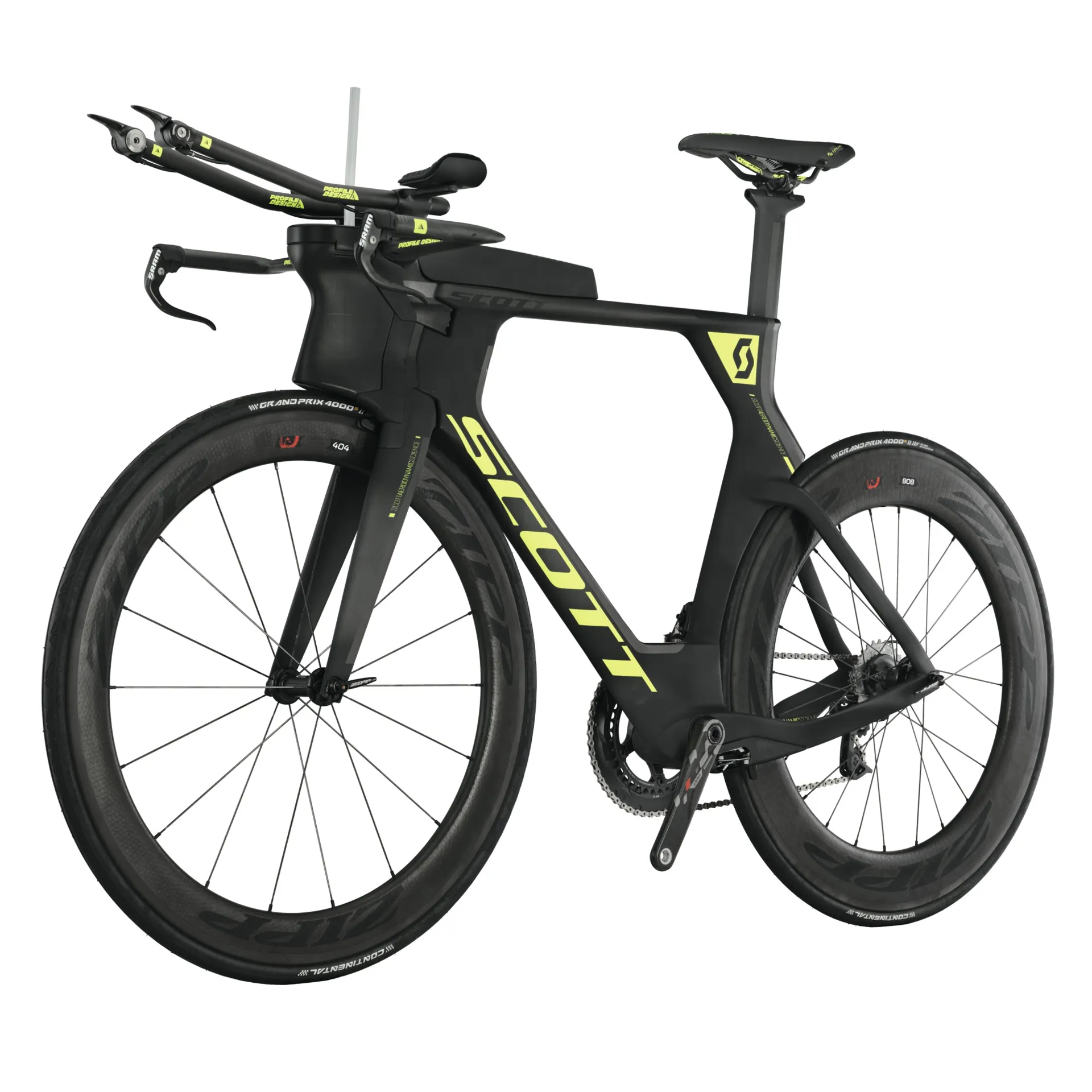

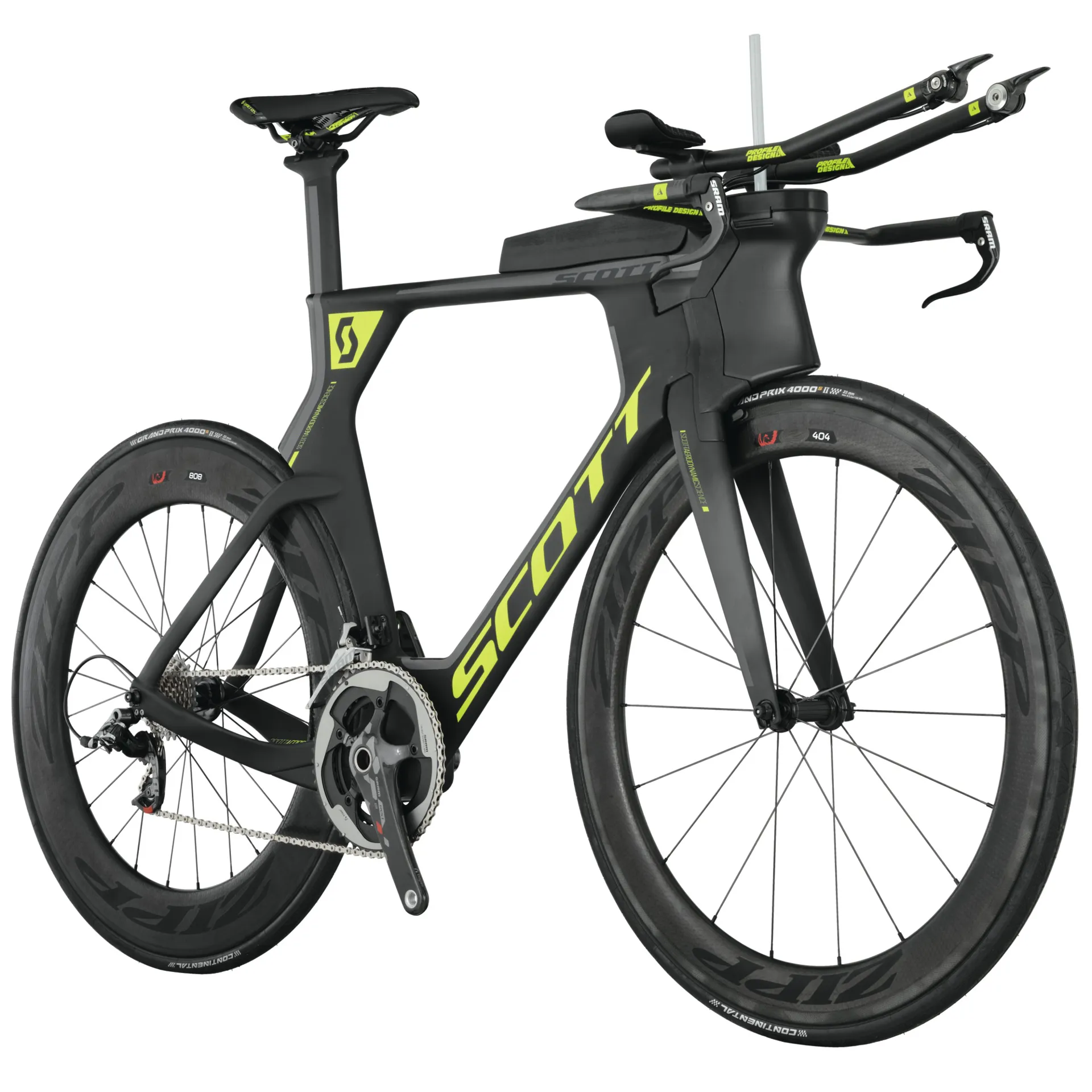

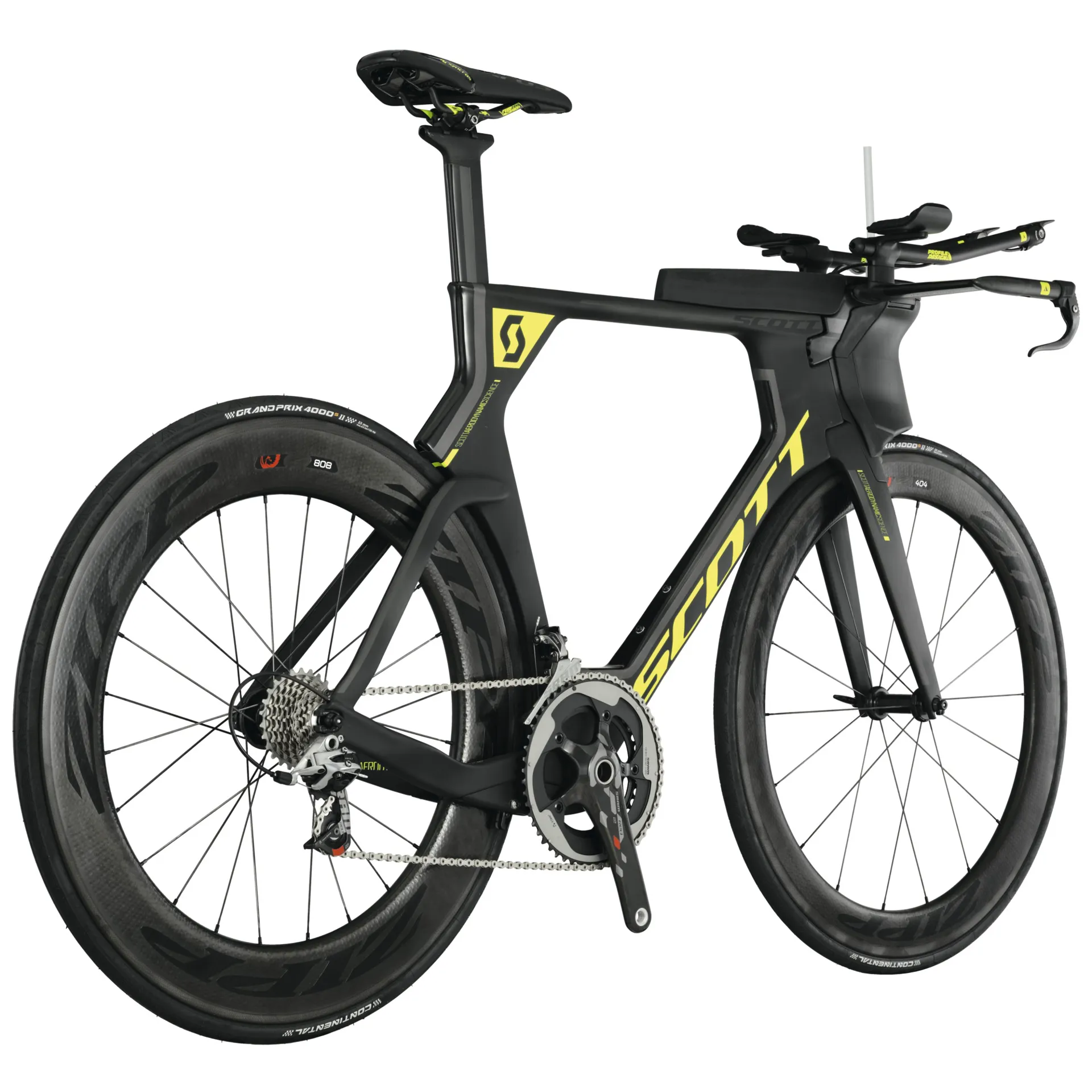

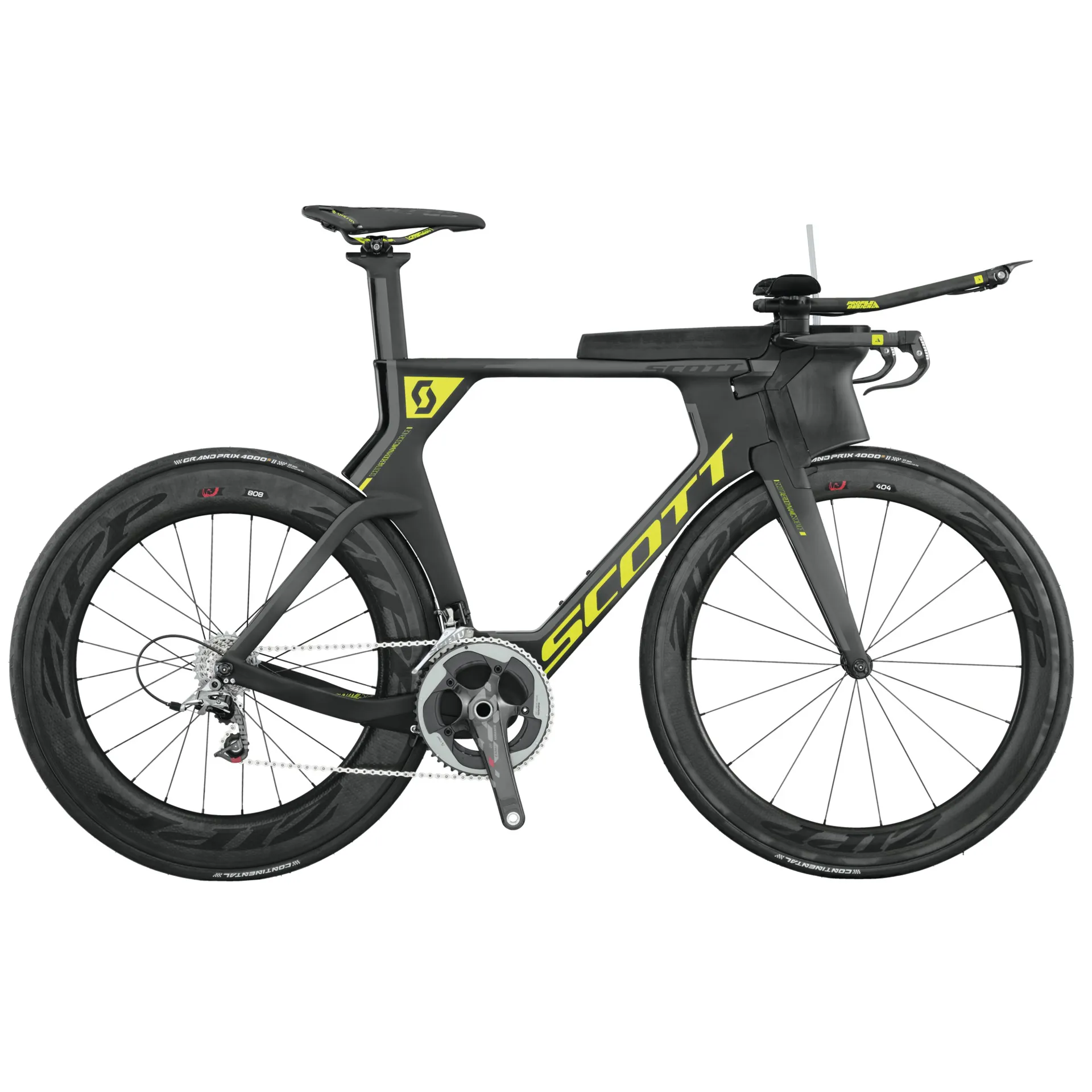

Scott Plasma Team Issue Mens TT/Tri Bike

Season:2015

Brand:Scott

Code:VAR238357

The SCOTT Plasma Team Issue has been completely redesigned to not only make it more aerodynamically sound, but also to make it faster WITH a moving rider on it than without.



Next level adjustability, fuel storage and integration make the Plasma Team Issue not just a bike, but rather a well-oiled machine with one intention and one intention only- the top step.







Frame
Plasma 5 / IMP technology HMX
TT/TRI Geometry / Plasma HMX seatpost / Replaceable hanger / UCI approved

Fork
Plasma 5 / 1-1/8" Carbon / integrated

Headset
Syncros Integrated 1-1/8" drop-in headset

Rear Derailleur
SRAM Red22 Carbon Ceramic 22 Speed

Front Derailleur
SRAM Red22 Titanium YAW Technology

Shifters
SRAM Red22 R2C 1090 SL YAW Carbon

Brake Levers
SRAM BL990

Brakes
Front: Scott TKB136
Rear: Shimano Dura-Ace Direct Mount

Crankset
SRAM Red22 Exogram Carbon 39/53 T

BB-Set
SRAM Int BB Press Fit

Handlebar
Profile Plasma 5 Areia, flat, 420mm

Aerobar
Profile T5+

Handlebar Stem
Profile Plasma 5 Tri, 7°, 85mm

Seatpost
Plasma HMX with Ritchey WCS clamp adjustable head

Seat
Syncros RP1.0 TRI

Hub (Front)
Zipp 404

Hub (Rear)
Zipp 808

Chain
SRAM Red22 PC-1191

Cassette
SRAM Red22 XG 1190 / 11 Speed 11-26 T

Spokes
Zipp 404 / 808

Rims
Zipp 404 Firecrest CC / Zipp 808 Firecrest CC

Tyres
Continental Grand Prix 4000s II 700 × 23C Fold
Sizing Information

scott plasma 5 geometry

                S/51   M/54   L/57   XL/60
A head tube angle             72.0 °   73.0 °   73.0 °   73.5 °
B head tube length             110.0 mm 138.0 mm 170.0 mm 199.0 mm
C top tube horizontal             524.0 mm 544.0 mm 564.0 mm 583.0 mm
D standover height             779.0 mm 809.0 mm 839.0 mm 869.0 mm
E BB offset             -65.0 mm -65.0 mm -65.0 mm -65.0 mm
F BB height             269.0 mm 269.0 mm 269.0 mm 269.0 mm
G wheel base             965.0 mm 983.0 mm 1,009.0 mm 1,029.0 mm
H BB center to toptube center             514.8 mm 544.6 mm 574.4 mm 604.2 mm
I BB center to top of seattube             529.8 mm 559.6 mm 589.4 mm 619.2 mm
J seattube angle             74.0 °   75.0 °   75.0 °   76.0 °
K chainstay min.             403.0 mm 403.0 mm 403.0 mm 403.0 mm
L reach             380.0 mm 397.0 mm 414.0 mm 430.0 mm
M stack             510.0 mm 540.0 mm 570.0 mm 600.0 mm
N stem length             85.0 mm 85.0 mm 85.0 mm 85.0 mm
