The SCOTT Plasma Premium has been completely redesigned to make it more aerodynamic, and to make it faster with a rider on it than without.

The SCOTT Plasma Premium has been completely redesigned to make it more aerodynamic, and to make it faster with a rider on it than without.

Scott

Scott Plasma Premium Mens TT/Tri Bike

Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

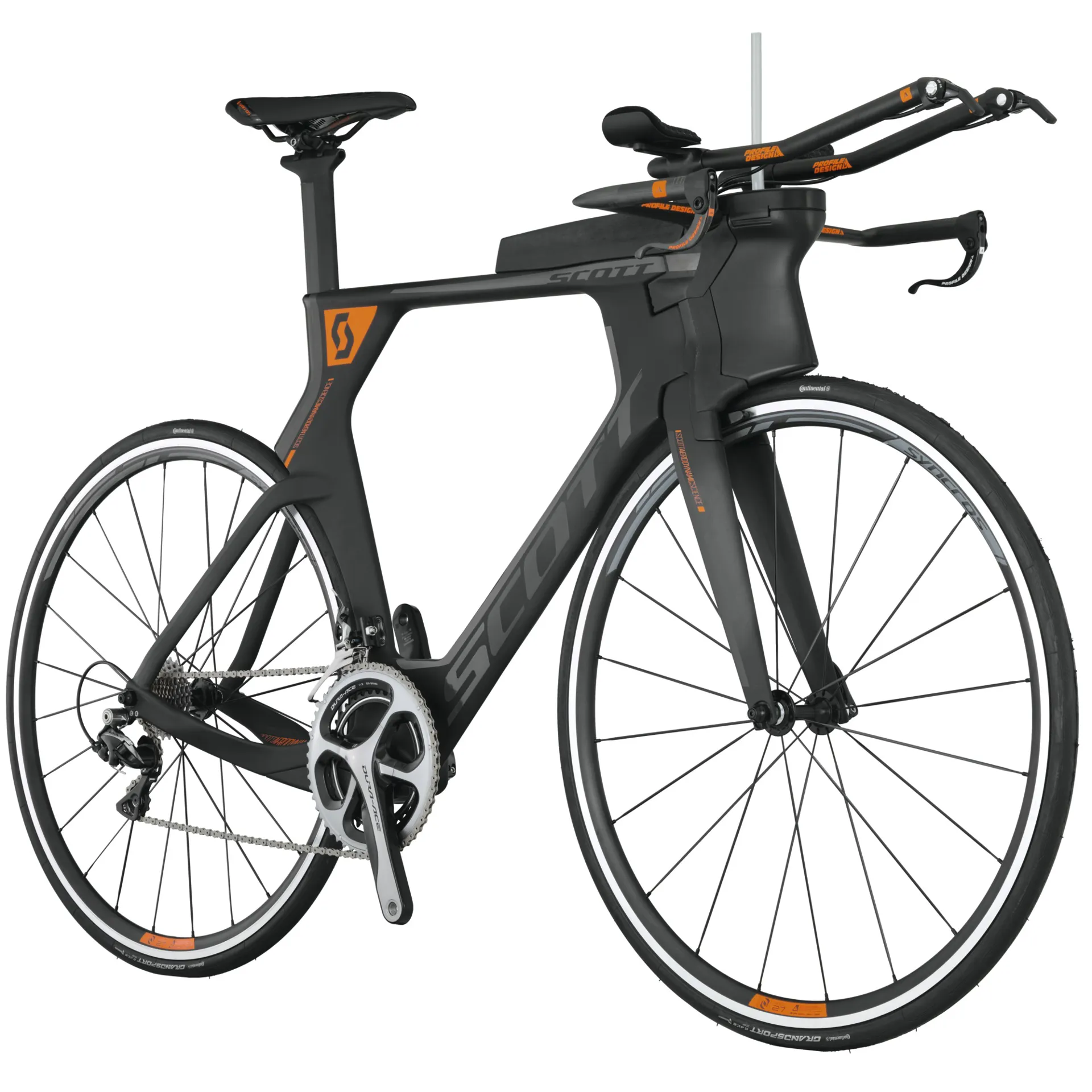

Scott Plasma Premium Mens TT/Tri Bike

Season:2015

Brand:Scott

Code:VAR238358

ERGONOMIC DESIGN

The position of the rider directly influences the force distribution during the pedal stroke and consequently determines pedalling efficiency while the position of the rider’s upper body directly affects aerodynamic drag. An aerodynamically positioned torso will lower drag therefore improve aerodynamic performance. Saddle and handlebar adjustability were in effect a major topic during the developmental phase.



INTEGRATED FRONT AND REAR BRAKES

While a standard Shimano direct-mount rear brake has been properly integrated below the bottom bracket, a proprietary front brake was developed. The low design and aerodynamic shape ensure compatibility with the front brake cover, while an improved leverage ratio and a rigid construction assure reliable and consistent braking power. The fork features two interfaces that allow for the installation of any direct mount or standard brake caliper.







Frame
Plasma 5 / IMP technology HMX
TT/TRI Geometry / Plasma HMX seatpost / Replaceable hanger / UCI approved

Fork
Plasma 5 / 1-1/8" Carbon / integrated

Headset
Syncros Integrated 1-1/8" drop-in headset

Rear Derailleur
Shimano Dura-Ace RD-9000 22 Speed

Front Derailleur
Shimano Dura-Ace FD-9000

Shifters
Shimano Dura-Ace SL-BSR1 bar end

Brake Levers
Profile Design 3 / one C

Brakes
Front: Scott TKB136
Rear: Shimano Dura-Ace Direct Mount

Crankset
Shimano Dura-Ace FC-9000 39/53 T

BB-Set
Shimano SM-BB92-41B

Handlebar
Profile Plasma 5 Areia, flat, 420mm

Aerobar
Profile T5+

Handlebar Stem
Profile Plasma 5 Tri, 7°, 85mm

Seatpost
Plasma HMX with Ritchey WCS clamp adjustable head

Seat
Syncros RP1.5 TRI

Hub (Front)
Formula RB 51

Hub (Rear)
Formula RB 5711

Chain
Shimano Dura-Ace CN-9000

Cassette
Shimano Dura-Ace CS-9000 / 11 Speed 11-25 T

Spokes
CN - Standard Black 2mm

Rims
Syncros Race 27 Aero Profile 20 Front / 24 Rear

Tyres
Continental Grand Sport Race 700 × 23C Fold
Sizing Information

scott plasma 5 geometry

                S/51   M/54   L/57   XL/60
A head tube angle             72.0 °   73.0 °   73.0 °   73.5 °
B head tube length             110.0 mm 138.0 mm 170.0 mm 199.0 mm
C top tube horizontal             524.0 mm 544.0 mm 564.0 mm 583.0 mm
D standover height             779.0 mm 809.0 mm 839.0 mm 869.0 mm
E BB offset             -65.0 mm -65.0 mm -65.0 mm -65.0 mm
F BB height             269.0 mm 269.0 mm 269.0 mm 269.0 mm
G wheel base             965.0 mm 983.0 mm 1,009.0 mm 1,029.0 mm
H BB center to toptube center             514.8 mm 544.6 mm 574.4 mm 604.2 mm
I BB center to top of seattube             529.8 mm 559.6 mm 589.4 mm 619.2 mm
J seattube angle             74.0 °   75.0 °   75.0 °   76.0 °
K chainstay min.             403.0 mm 403.0 mm 403.0 mm 403.0 mm
L reach             380.0 mm 397.0 mm 414.0 mm 430.0 mm
M stack             510.0 mm 540.0 mm 570.0 mm 600.0 mm
N stem length             85.0 mm 85.0 mm 85.0 mm 85.0 mm
