The Forge is equipped with the JD TransX PST system, whilst simple to operate, this system has many of the features you would expect from a much more expensive ebike.

The Forge is equipped with the JD TransX PST system, whilst simple to operate, this system has many of the features you would expect from a much more expensive ebike.

Raleigh

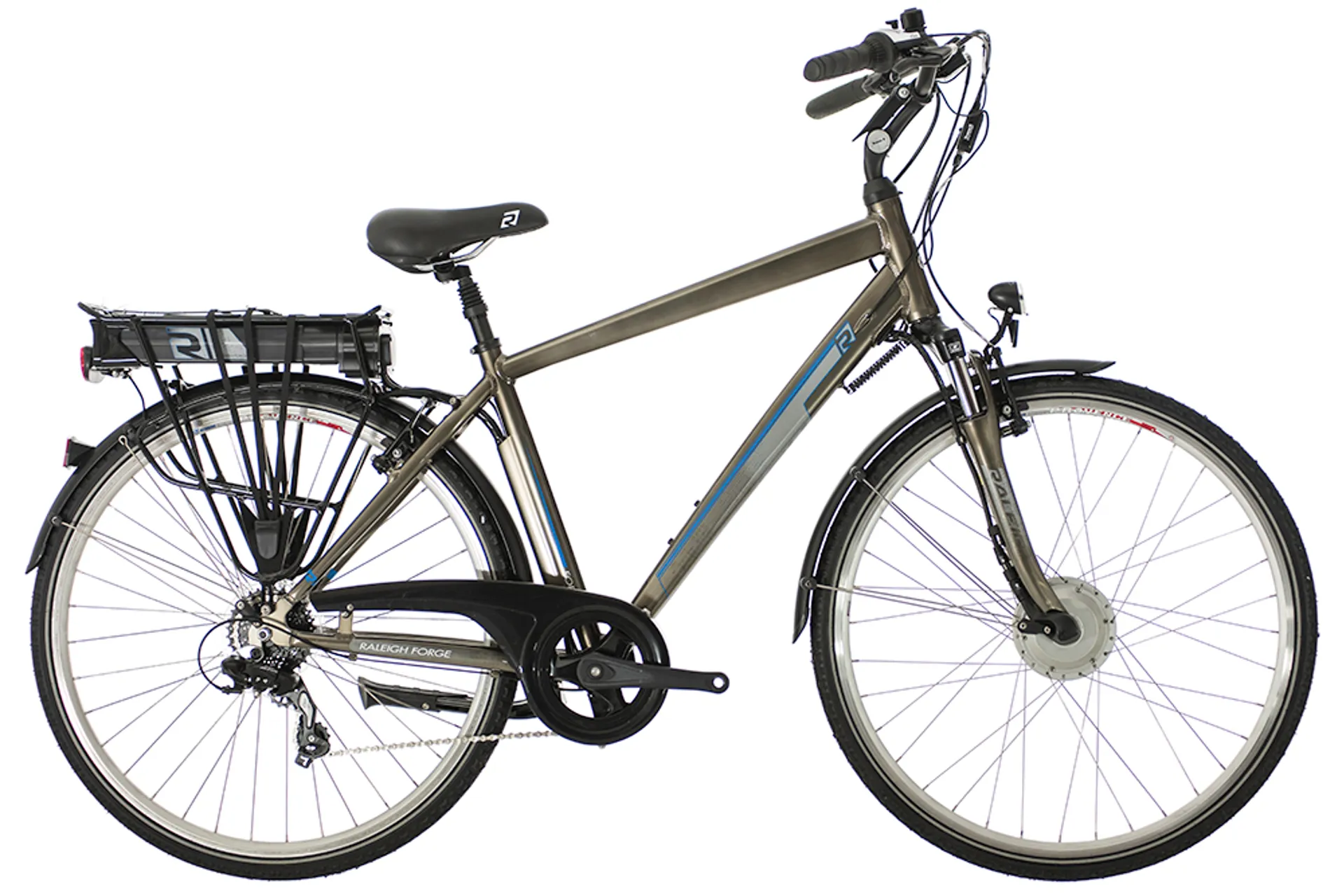

Raleigh Forge Crossbar Electric Bike

£1,250.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Raleigh Forge Crossbar Electric Bike

Season:2015

Brand:Raleigh

Code:RFG148MCH

The Forge is equipped with the JD TransX PST system, whilst simple to operate, this system has many of the features you would expect from a much more expensive ebike.



Large 11Ah battery will help you ride further than you thought possible



Walk assistance button for those tricky moments pushing your bike up steps etc



Powerfull and quiet 36v motor


Technical Information

• Gender: Unisex

• Material: Alloy

• Wheel size: 700c



Electrical

• Motor: TransX 36v 250w Brushless Quickstop Motor

• Battery: TransX 11Ah Compact Battery

• Display: TransX PST Display, 3 assist levels with Walk Function

• Range: Eco 85+10km Normal 65+10km Climbing 45+5km



Frameset

• Frame: Aluminium 6061-T6 Crossbar

• Fork: Suntour CR-V8 63mm

• Headset: Semi-Integrated



Groupset

• Shift Levers: Revoshift 8 Speed

• Brake Levers: Alloy V-brake with cut off quick stop function. Grippy comfort rubber inserts

• Rear Derailleur: Altus 8 Speed

• Front Brake: V-Brake

• Rear Brake: V-Brake

• Crankset: Alloy forged 170mm, 42t

• Bottom Bracket: 124MM Square taper

• Cassette: 8 SPEED 11-32 cassette

• Chain: 8 Speed Chain

• Pedals: Comfort Pedals with Anti Slip



Wheelset

• Front Wheel: Double Wall rim 36 hole 700c on TransX Motor hub

• Rear Wheel: Double Wall rim 36 hole 700c on Cassette hub

• Front Hub: TransX Motor hub

• Rear Hub: Alloy 8 speed cassette Hub 36 hole

• Rims: Double Wall rim 36 hole 700c

• Spokes: Stainless 14g

• Front Tyre: Kenda - 700c with reflective stripe

• Rear Tyre: Kenda - 700c with reflective stripe



Components

• Stem: Alloy Adjustable angle

• Handlebars: Riser bar

• Grips: Ergonomic comfort Grips

• Saddle: Comfort Saddle

• Seatpost: Comfort Suspension Seatpost

• Seat Clamp: 34.9 Clamp



Accessories

• Mudguards: Full Mudguards

• Chainguard: Half Chain Cover

• Rear Carrier: Alloy carrier with Luggage strap

• Lighting: Front and Rear Lights Powered by JD System

• Extras: Kick Stand
