The Pine Mountain is taking hardtail trail riding to the next level with wide 27.5+ tires on tubeless-ready rims that roll fast and grip anything
The Pine Mountain is taking hardtail trail riding to the next level with wide 27.5+ tires on tubeless-ready rims that roll fast and grip anything
Marin

2017 Marin Pine Mountain 1 Mountain Bike

£1,200.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

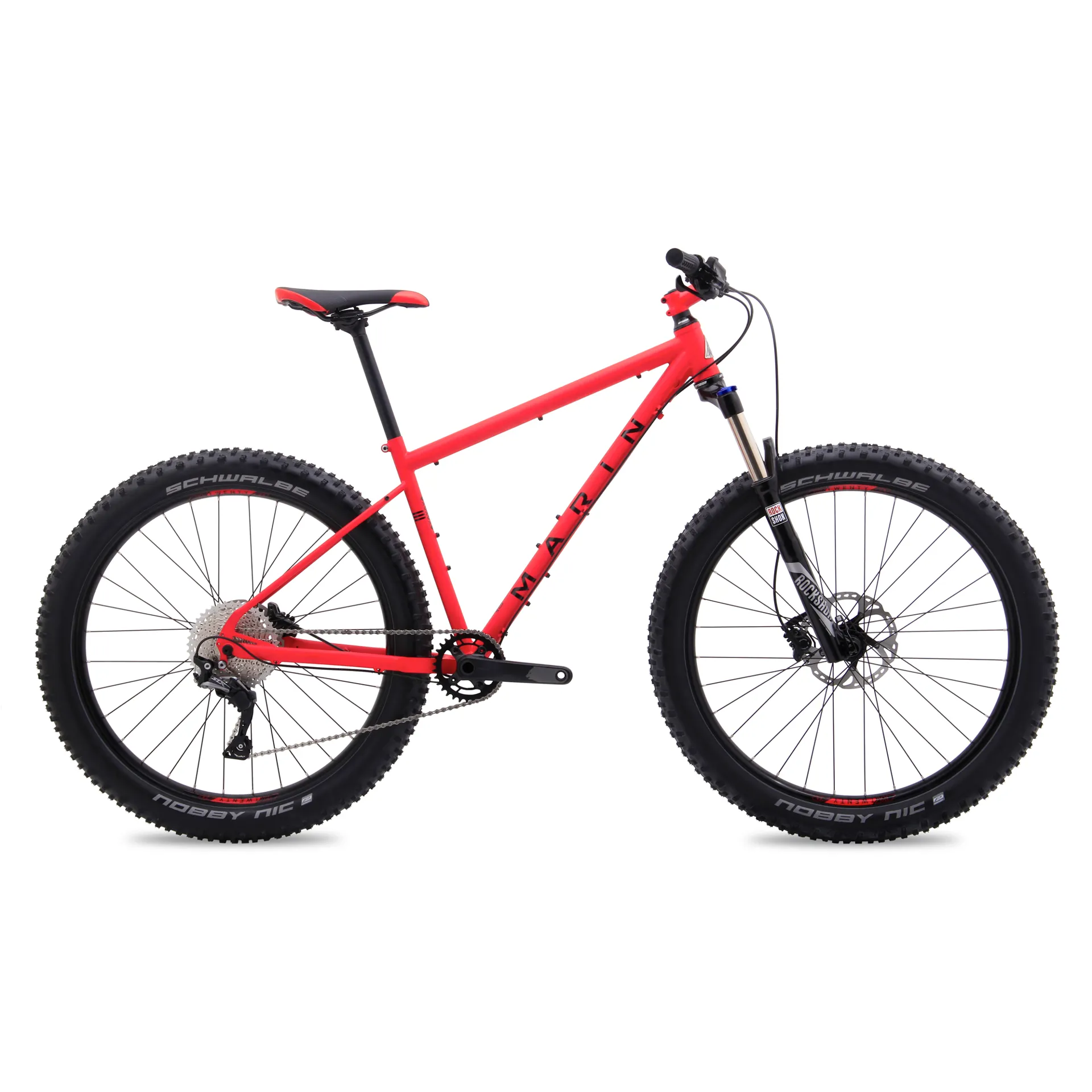

2017 Marin Pine Mountain 1 Mountain Bike

Season:2017

Brand:Marin

Code:8113Satin Red

The Pine Mountain is taking hardtail trail riding to the next level with wide 27.5+ tires on tubeless-ready rims that roll fast and grip anything.



Choose between Columbus Thron tubing and investment cast dropouts, locking Naild thru-axles, and a Shimano XT drivetrain and brakes on the Pine Mountain 2, or classic butted CroMo frames on the Pine Mountain & Pine Mountain 1 and go places you didn't think a hardtail could. Trail ready geometry, plus-sized tires and wide-range 1x drivetrains make the bikes worthy of your most fun adventures.



It only took us 30 years of trail riding to create the Pine Mountain series - enjoy a ride like none other.







Frame

Double Butted CrMo, 27.5+ Wheels, Boost 141x9mm Open Dropouts

Fork

Rock Shox Recon Silver RL 27.5+, 120mm of travel, Compression Adj, Rebound Adj, Solo Air, 15x110, Maxle Lite, 51mm Offset

Rims

Marin Aluminium Double Wall, Disc Specific, 40mm Inner, Pinned Joint, 32H, Tubeless Ready

Rear Hub

Joytech, 141mmx9mm, 6 Bolt Disc, 32H

Front Hub

Joytech, 100x9mm, 6 Bolt Disc, 32H

Tyres

Schwalbe Nobby Nic, 27.5x2.9”

Rear Derailleur

Shimano SLX GS Shadow Plus

Shifters

Shimano SLX Deore 1x11-Speed

Crankset

Marin Forged Alloy 1x10, Hollow Spindle, Steel Forged Narrow-Wide 32T Chainring, 76mm BCD, 53mm Chainline

Bottom Bracket

External Sealed Cartridge Bearing

Chain

KMC X11L

Cassette

Sunrace 11-Speed, 11-42T

Rear Brake

Shimano BR-M506 Hydraulic Disc, 160mm 6 Bolt Disc

Front Brake

Shimano BR-M506 Hydraulic Disc, 180mm 6 Bolt Disc

Brake Levers

Shimano BR-M506 Hydraulic

Handlebar

Marin Mini-Riser, 6061 Double Butted, 15mm rise, 780mm width, 4 degree up, 9 degree back

Stem

Marin 3D Forged Alloy

Grips

Marin Locking

Headset

FSA Orbit, Sealed Cartridge Bearing, 1 1/8" x 1 1/2”

Seatpost

Marin Alloy Light

Saddle

Marin MTB

Spokes

14g Black Stainless Steel

Pedals

Nylon Platform
