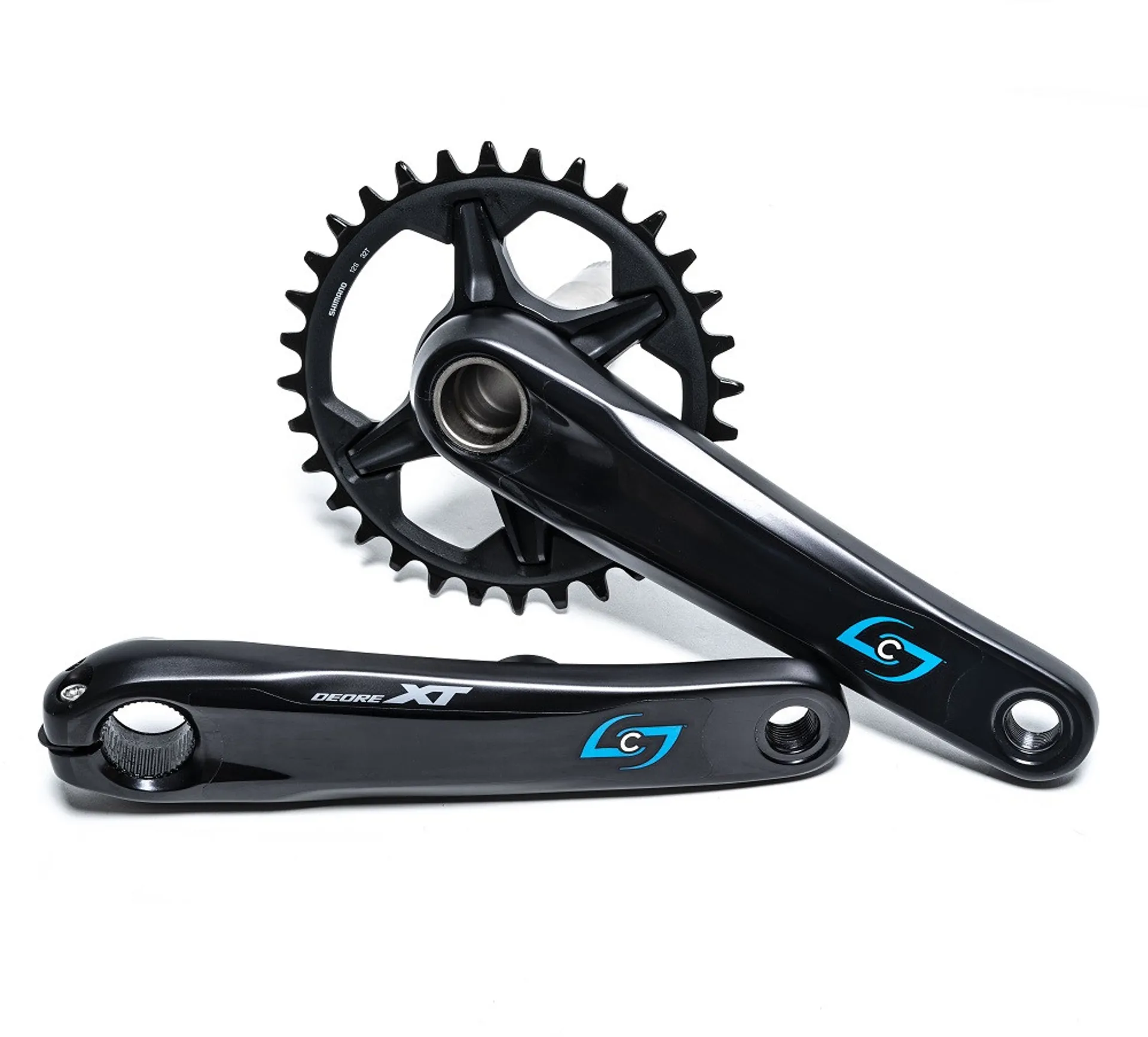

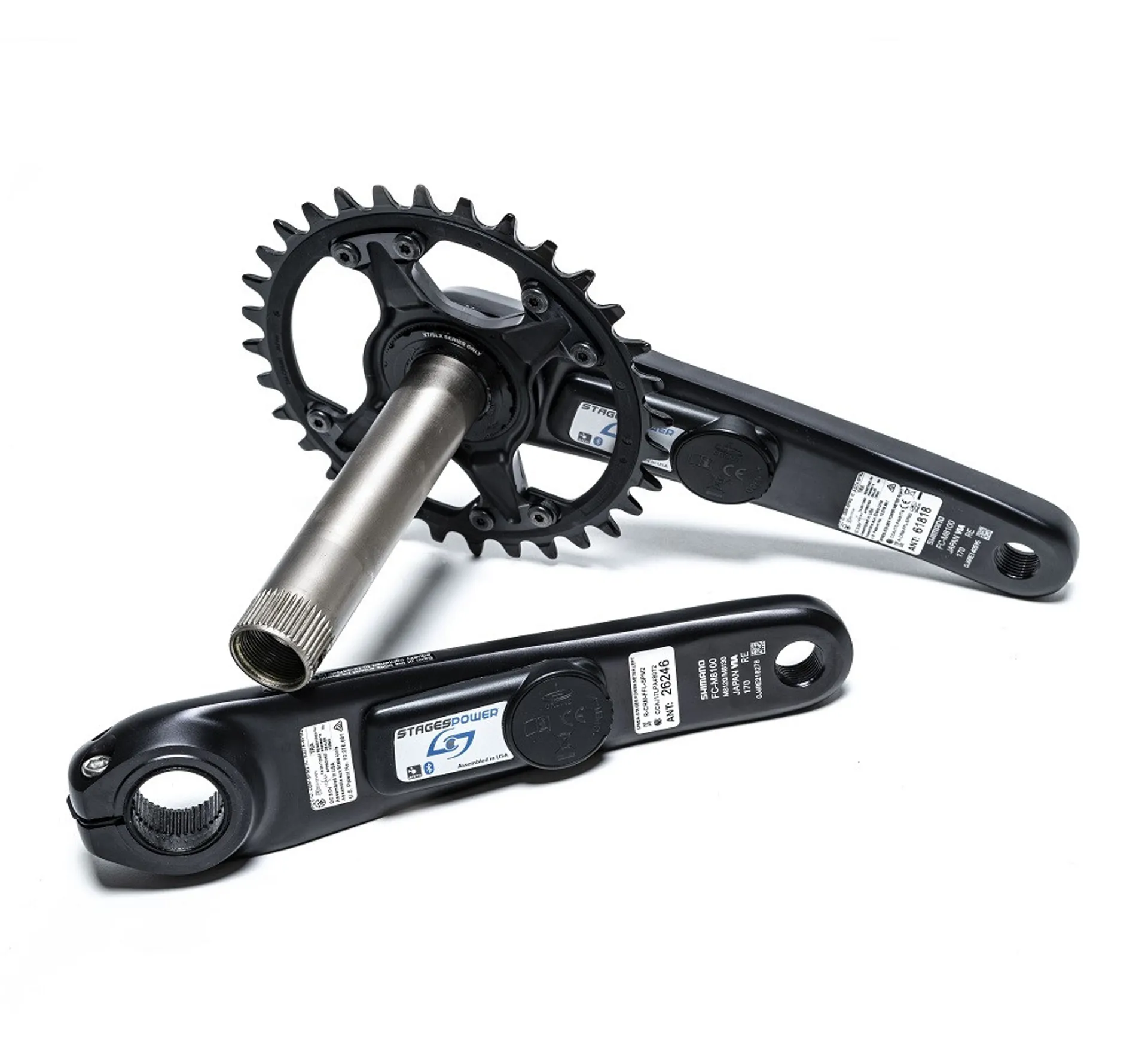

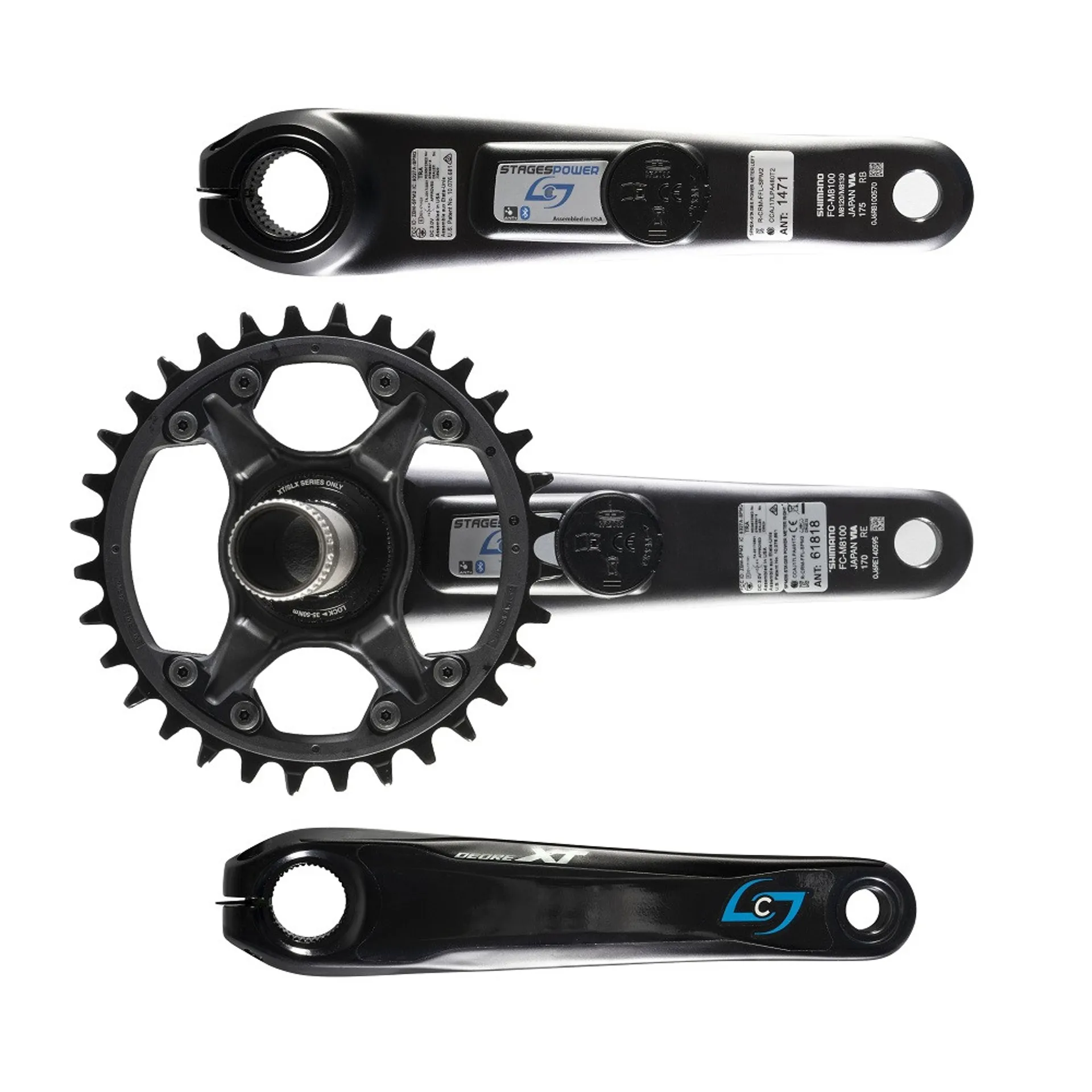

Stages Gen 3 Stages Power meters built onto a Shimano XT M8120 crankset. Sensors are placed on both the drive and non-drive side of the crank in order to independently measure a rider's left and right legs.
Stages Gen 3 Stages Power meters built onto a Shimano XT M8120 crankset. Sensors are placed on both the drive and non-drive side of the crank in order to independently measure a rider's left and right legs.
Stages Cycling

Stages Power LR Gen3 XT M8120 Dual Sided Power Meter

£689.00 £800.00 14% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Stages Power LR Gen3 XT M8120 Dual Sided Power Meter

Season:2020

Brand:Stages Cycling

Code:STAM8100LRBLK

Stages Power MTB. Power isn't just for roadies. Stages Power meters are ridden by world and national champions in every discipline of cycling. From weekend warriors to BMC Factory Racing, Trek Factory Racing XC and Olympian Chloe Woodruff, Stages Power for MTB is ridden by the best athletes in the world.
Active Temperature Compensation as standard equipment
Consistency of measurement is the most important feature of a power meter. Stages Power was the first meter to make temperature compensation an automatic process ensuring accurate readings no matter the environmental conditions. ATC is the key reason a rider can trust data from Stages Power in all conditions.
Individual meter calibration for the most accurate results.
Stages Power meters are calibrated individually to ensure a +/- 1.5% accuracy level. Individual calibration means that you can trust the bi-lateral data produced by our system, as it's a real measurement and not an estimation.

Additional features:
• +/- 1.5 % accuracy in all conditions
• Active temperature compensation
• Accelerometer based cadence measurement
• Wirelessly upgradable firmware
• LED indicator displays battery level at start up (with no need for connect to an app) and confirms successful zero reset
• Updated accelorometer and addition of gyroscope for improved cadence resolution
• Upgraded BLE and ANT+ radios offer a 6x improvement of data transmission strength
Technical Information
Specifications:
• Accuracy: ± 1.5%
• Power meter housing: low profile design, with robust door interface. Tool free battery replacement on the left arm and phillips head screw access on the drive side
• Weight: Only adds 35g to base crankset
• Battery Life: 175+ hours (via 2 coin cell: CR2032)
• Power range (Watts): 0 to 5000
• Cadence range (rpm): 20-220
• Water resistance rating: IPX7

Sizing Options:
• Chainring size: 32t
• Lengths: 170mm, 175mm

In The Box:
• Non-drive-side power meter
• Drive-side power meter
• Shimano chainrings
• 2x high quality CR2032 coin cell battery
• Lifetime access to Stages Link for power meter management and firmware upgrade.
• 2 months free access to Stages Link premium training and coaching features.
• Product Identification Card with Serial Number and ANT+ I.D. Number.
• User Guide
