Because it’s a bicycle. It’s supposed to be simple. To make something elegant to the point where it removes what’s in the way... that’s advancement. That is the standard we held ourselves to while developing our first electronic shifting system; SRAM RED eTap.

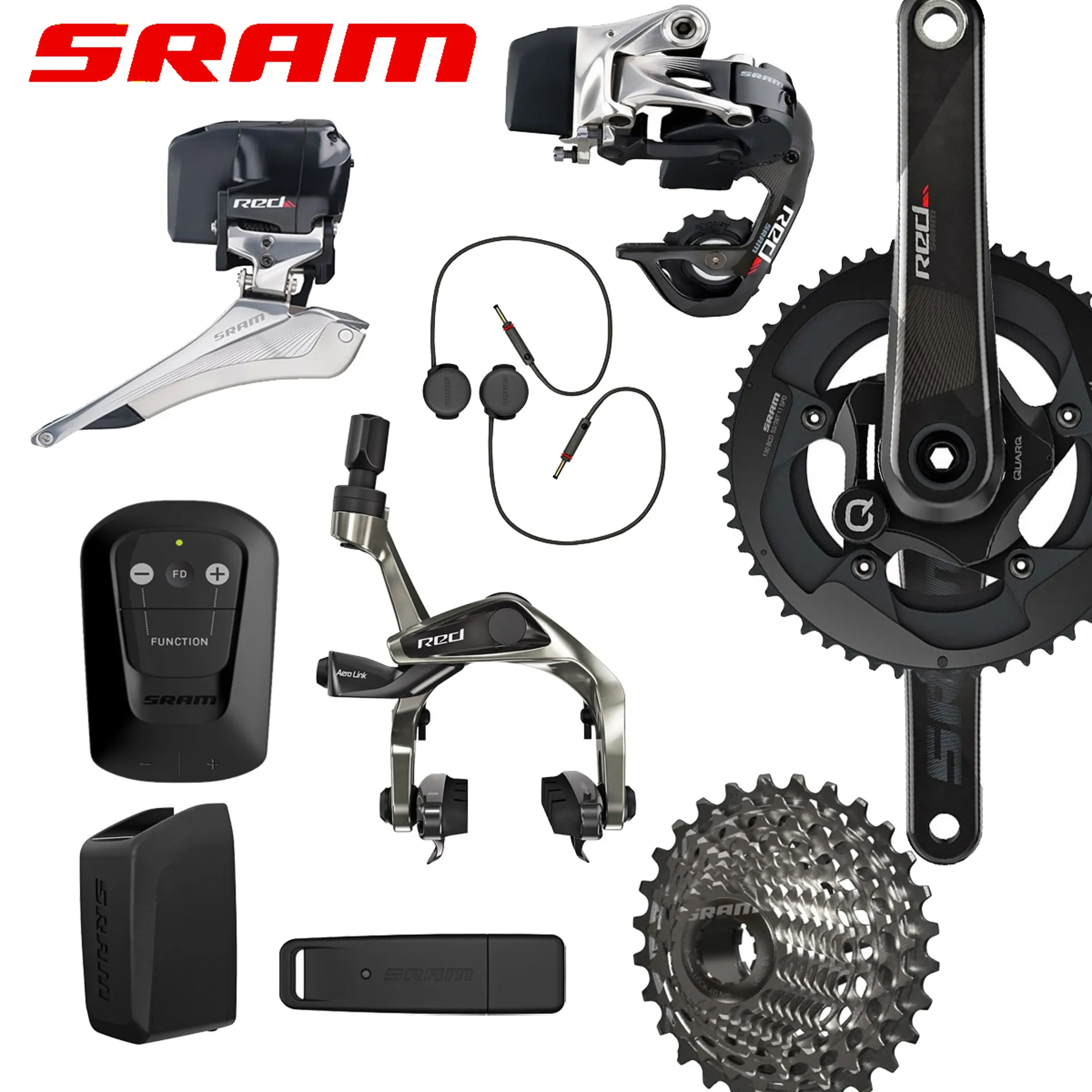

Key Features:
• SRAM Quark GXP Power Meter Chainset / 172.5mm / 53-39T
• 4x 650mm Blips
• Blip Box
• Front eTap Derailleur & Battery
• Rear eTap Derailleur & Battery
• eTap Battery Charger
• eTap Firmware Update Dongle
• Quick Start Guide
• SRAM XG-1190 / 11 Speed Cassette / 11-28T
• SRAM RED Hollow Pin Chain
• SRAM RED Aero Link Brake Calipers
Description:
The SRAM Red eTap Electronic Aero Groupset provides all the electronic bits you will need to upgrade your existing SRAM Red groupset.
Blips:
Be it the fireworks of a finale, an ideal rhythm, climbing on the top, or a deep, dark place extracting the last kilojoule of effort on your bike split, you want to adjust your gear with the twitch of a finger. eTap Blip satellite shifters allow you to shift when you want, where you want.
Features:
• Limitless remote shifting positions for drop and aero bars
• Compatible with SRAM RED® eTap shift/brake controls
Blip Box:
BlipBox is the control module that turns your triathlon or time trial machine into a wireless missile. Connected to SRAM RED® eTap Blip remote shifters, the BlipBox manages the wireless shifting via AIREA™, SRAM’s proprietary communication protocol, allowing immediate shifts from nearly any aero position.
Features:
• BlipBox mount included
• Replaces standard drop bar shift levers
• Limitless aero configurations
• Up to two positions per side
• Fits a standard Garmin mount or the included mount
Front Derailleur & Battery:
The SRAM Red eTap Front derailleur makes a good thing better by executing front shifts confidently and quickly over their proprietary wireless communication protocol. The eTap shifter optimises Yaw adjustments as needed throughout the shift range with no need for rider input. At 187g (with battery), the Red eTap front derailleur maintains SRAM's best in class weight title.
Features:
• Wireless connection via AIREA Network
• Braze-On / clamp adaptor
• Designed to work with SRAM X-GlideR 11-speed chainrings
• Weight: 187g (with battery)
Rear Derailleur & Battery:
The SRAM Red eTap Rear Derailleur executes shift the moment you demand it, with military precision. Wirelessly. it's easy to set up, clean in appearance and delightfully uncomplicated. Mechanical necessities such as carbon pulley cage, ceramic pulley bearings, and high polished alloy artfully blend with proprietary electronic advancements to deliver a 239g (with battery) shifting wonder.
Features:
• Wireless connection via AIREA Network
• Designed to work with SRAM PowerGlide & PowerdomeX cassettes
• Cage Size: short
• Max Tooth: 28T
• Weight: 239g (with battery)
Battery Charger:
Keep your SRAM Red eTap system going with the SRAM eTap Battery Charger.
To remove the battery from your derailleur simply flip the tool-free battery latch and slide out the battery. Then snap the battery into the USB powered charger and away you go. A full charge takes just 45 minutes to complete.
Features:
• Compatibility: SRAM Red eTap
• USB Port Can Be Plugged Into A Computer Or A/C To USB Plug
• Charge Time: 45 Minutes
• Battery Not Included
Firmware Update Dongle:
SRAM Red eTap will be compatible with both PC and Mac systems. This will enable you to manage the groupset’s firmware updates wirelessly using the Firmware USB stick.
Quick Start Guide:
As the name suggests this guides you through how to correctly set up the eTap components.
SRAM RED Quark Chainset:
The crankset is the heart of your bicycle and where you’ll find the Quarq power meter. The sole job of the crankset is to convert the effort from both legs to forward motion. It is the perfect place to measure power. This power meter works for every discipline: Road, triathlon, time trial and cyclo-cross. The chainrings are replaceable should your bike, discipline or ability change.
Features:
• SRAM Road 11-speed compatible
• Compatible with SRAM RED eTap components
• Bottom Bracket Type: GXP
• Chainring size: 53-39t
• Crank Arm Length: 172.5mm
• A direct force power meter that measures total power output from both legs with +/-1.5% accuracy
• Works for every discipline: Road, triathlon, time trial and cyclo-cross
• No compromises on materials, shifting, wheels or pedal choice
• Proven by pro teams and athletes throughout the world – Cobbled Classics, Giro d’Italia, Tour de France, Vuelta a España, World Championships
• Number 1 at the Ironman World Championship for the last three years
• Uses a hidden bolt to mount the chainrings – compatible SRAM chainrings ensure the derailment pin lines up behind the crank arm
• 10K – programmed with over 10,000 data points to eliminate temperature effects on power measurement.
• AxCad – A multi-axis accelerometer switches the power meter on and measures cadence, simplifying installation and operation.
• Breakthrough Materials – Exogram hollow carbon fibre crank arms - the lightest, strongest crank arms we make - minimise weight and maximise speed. [ELSA RS, ELSA R and SRAM RED]
• Easy to use (and reuse) – LED indicator and visible ANT+ ID. The replaceable CR2032 battery never leaves you without power. Manual and automatic zeroing make it truly set and forget.
• Built to Last – IPX7 waterproof rating, 2-year warranty, free firmware updates and acclaimed international support. Moves with you from bike to bike.
• With Quarq's free Qalvin app - available for Windows, Mac, iOS and Android - you can set the zero offset, check battery voltage, run diagnostics and perform firmware updates. For free.
SRAM XG-1190 11 Speed Cassette:
The hollow steel dome in the SRAM XG-1190 X-Glide 11 Speed Cassette makes for the stiffest gear cluster ever at the lightest weight. Constructed from heat-treated, high-grade tool steel to provide superlative durability and a beautiful finish, with StealthRing elastomers and advanced tooth profiles that eliminate vibration and noise for a smooth, silent ride.
The aluminium cog is lighter, stiffer and stronger due to its intelligent design, the light material and SRAM's ingenious production processes.
SRAM RED Hollow Pin 11 Speed Chain:
The SRAM RED 22 chain features more heavily chamfered outer plates for improved shifting and quieter running. Other advancements include a new inner plate finish plus chrome hardened pin construction, both for longer chain life. The HollowPin construction of SRAM s 11 speed chain provides smooth, precise shifting and weight savings without sacrificing strength.
SRAM RED Aero Link Brake Calipers
Front and rear Sram Red Aero Link brake calipers
