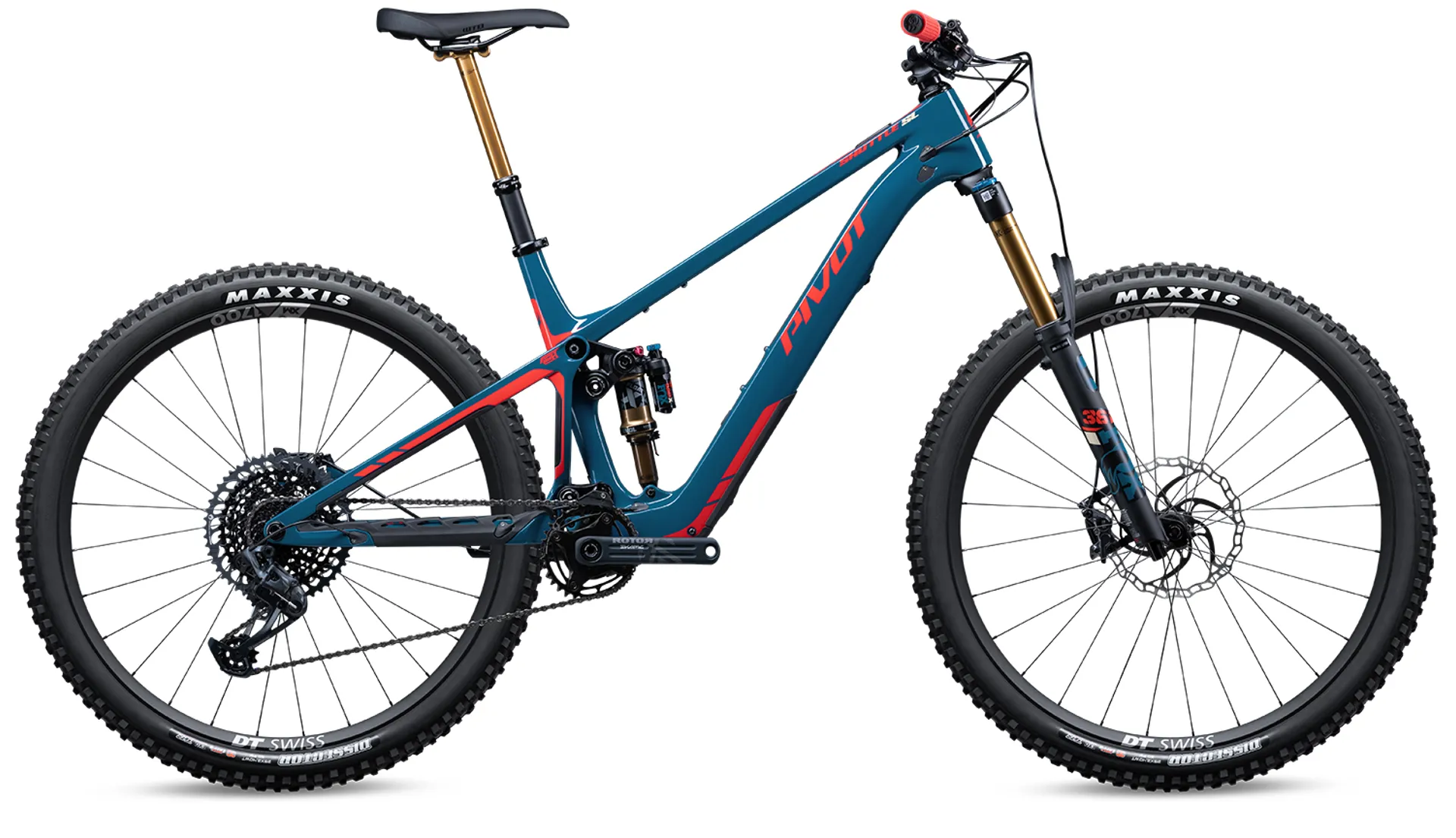

Pivot Cycles Shuttle SL 29 Pro X01 electric mountain bike in Blue Denim
Pivot Cycles Shuttle SL 29 Pro X01 electric mountain bike in Blue Denim
Pivot Cycles

Pivot Cycles Shuttle SL 29 Pro X01 in Blue Denim

£5,624.95 £11,250.00 50% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Pivot Cycles Shuttle SL 29 Pro X01 in Blue Denim

Season:2022

Brand:Pivot Cycles

Code:PCBSHUTTLESLPROBLUBLU



In the Shuttle SL, Pivot has put its focus on weight, refined suspension with the DW-Link, and crisp handling that gives the feel of Pivot's best trail bikes combined with the perfect blend of power assisted acceleration and climbing performance to get you up the mountain as fast as you can get down it.

Key features:

  • Sleek full carbon hollow core frame
  • Seamless integrated Fazua Ride 60 drive system
  • Flip chip geometry customization
  • Size specific chainstay lengths
  • 130mm travel DW-Link suspension
  • Trunnion mounted Fox Float X Factory rear shock
  • Fox 36 Factory forks, 150mm travel
  • 60Nm of torque / 450 watts peak power
  • Integrated 430Wh battery
  • Superlight system 9.25lbs (4.2kg)
  • 3 assist levels + boost mode
  • Drag-free pedaling without assist

Pivot Shuttle SL Hi Geometry

Pivot Shuttle SL Low Geometry
Technical Information
  • Frame
    Sleek full carbon hollow core frame, Progressive trail geometry, Size specific chainstay lengths, Flip chip geometry customization, 130mm travel, DW-Link suspension
  • Fork
    Fox Factory 36 e-MTB, 29", Kashima, 44mm offset, Grip2, 150mm travel
  • Rear Shock
    Fox Factory Float X Trunnion, Kashima
  • Drive Unit
    FAZUA Ride 60 Drive System, 60Nm
  • Battery
    FAZUA Ride 60 430Wh Internal battery
  • Display
    FAZUA Ride 60 Top Tube display
  • Rear Derailleur
    SRAM X01 Eagle, 12-speed
  • Shifter
    SRAM X01 Eagle, 12-speed
  • Crankset
    ROTOR EKAPIC E-MTB
  • Cassette
    SRAM XG-1275, 10-52t, 12-Speed
  • Brakes
    Shimano XT M8120 4 piston brake callipers, Galfer 203mmF/180mmR rotors
  • Handlebar
    Phoenix Race Low Rise Carbon - 780mm
  • Stem
    Phoenix Team Enduro/Trail - 45mm
  • Seatpost
    Fox Factory Kashima dropper seatpost, 150mm (S), 175mm (M-L), 200mm (XL)
  • Seat
    Phoenix WTB Volt Pro
  • Headset
    Pivot Precision Sealed Cartridge
  • Wheel Set
    DT Swiss XM1700 w/DT Swiss 350 hub & 36t Star Ratchet 30mm 29", 15x110 front, 12x157 rear
  • Front Tyre
    Maxxis Dissector, 29" x 2.4" WT, TR, 3C, EXO, MaxxTerra
  • Rear Tyre
    Maxxis Dissector, 29" x 2.4" WT, TR, 3C, EXO, MaxxTerra
