The best just got better
The best just got better
Orbea

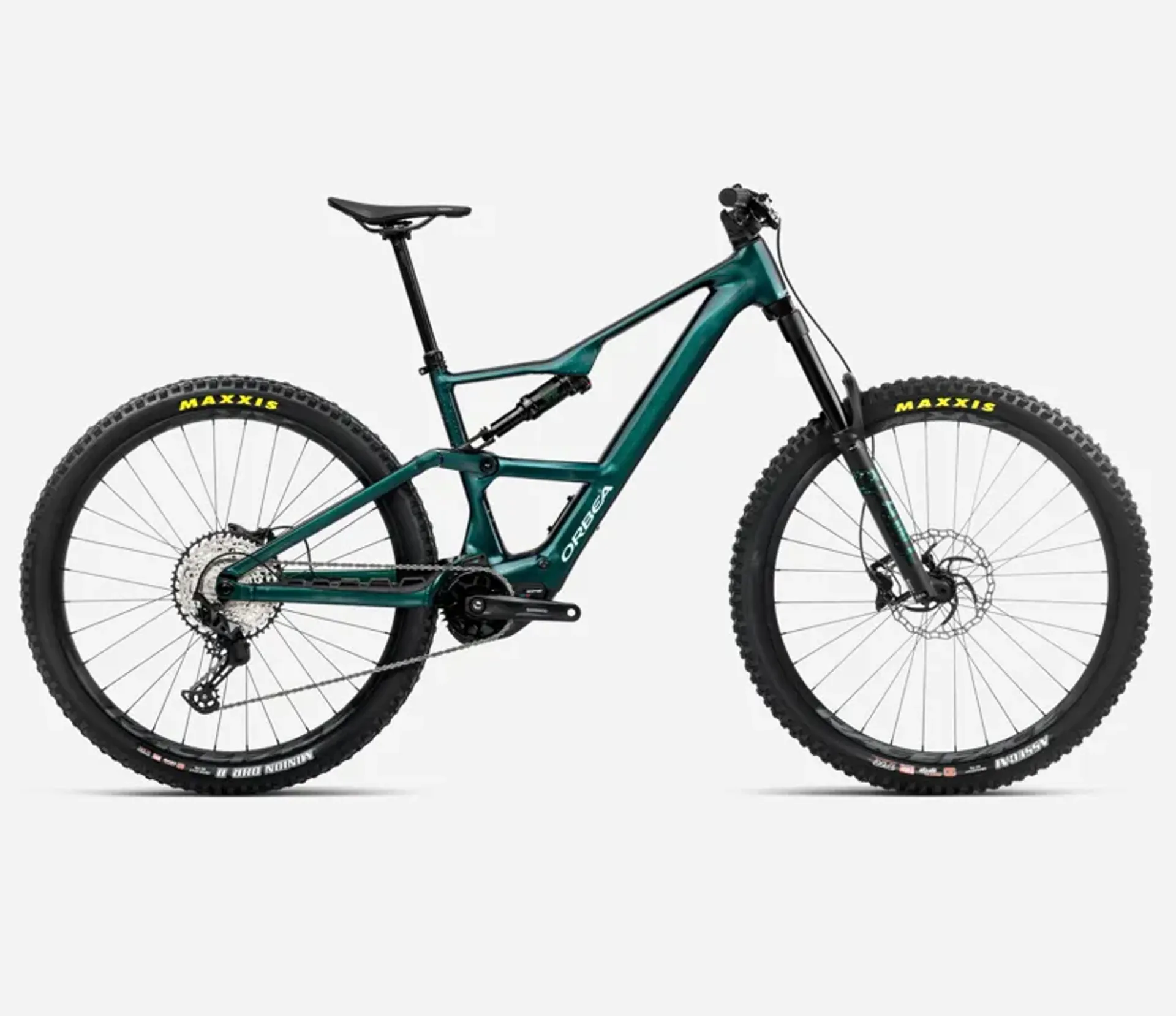

2025 Orbea Rise LT H20 eMTB In Escape Green/Splash Ice Green

£5,099.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2025 Orbea Rise LT H20 eMTB In Escape Green/Splash Ice Green

Season:2025

Brand:Orbea

Code:S334TTCCSU

The best just got better

Rise is ready to reshape the lightweight e-bike market once again. Leaner and keener than ever, with more energy packed into every gram.

Better handling, more power and increased stamina. Orbea updated Rider Synergy means more control than ever before, giving an unbeatable trail experience no matter where you ride.

Features:

  • High polished alloy - Each weld on the main frame is polished smooth, matching the aesthetics of a monocoque frame but also importantly the action of polishing the welds increases fatigue resistance at these high stress points.
  • Tuned rigidity // high performance handling - For the best handling, bikes need the correct rigidity, in the correct places. Rise's new asymetric frame design is key to tuning the frame rigidity. The result is predictable performance when you are pushing the limits.
  • The new rider synergy - Rider Synergy, (RS) is the heart of Rise. The most natural, elastic assistance and best in class battery range for the most epic adventures. Now Rise takes that even further with the option to increase torque to 85Nm.
  • Steep 'N' Deep - Drop the saddle right out of the way to give more space to move your body and even better control. With Rise you can fit up to a 230mm dropper. Long-travel droppers are the only way!
  • Further and faster - The natural RS Gen2 assistance works with you to involve you in the ride, providing assistance where it is needed and conserving battery life elsewhere.
Technical Information
  • Frame
    Orbea Rise LT Hydro 2025, 150mm travel, 29" wheels, Concentric Boost 12x148
  • Shock
    Fox Float Performance, 2-Pos Evol LV, custom tune 210x55mm
  • Fork
    Fox 36 Float AWL HD Sport, 160mm travel, Rail, QR15x110
  • Headset
    Alloy 1-1/2", Black Oxidated Bearing
  • Battery
    Orbea Internal 630Wh
  • Range Extender
    N/A
  • Motor
    Shimano EP600 RS Gen2 MC
  • Display
    N/A
  • Charger
    Orbea 2.Generation eBike Smart charger 42V/2-4A
  • Remote
    Shimano EN600-L
  • Chainring
    e*thirteen Helix Core e*spec, Direct Mount, 32T, 55mm ChainLine
  • Crank
    Shimano Steps EM600
  • Shifters
    Shimano Deore M6100 I-Spec EV
  • Cassette
    Shimano SLX CS-M7100, 10-51t, 12-Speed
  • Rear Derailleur
    Shimano SLX RD-M7100 SGS Shadow Plus
  • Chain
    Shimano Deore CN-M6100
  • Chainguide
    Orbea Rise chainguide
  • Handlebar
    OC Mountain Control MC31, Rise 20mm, Width 800mm
  • Stem
    OC Mountain Control MC20, 0º
  • Computer Mount
    OC Computer Mount CM-05, Garmin/Sigma
  • Brakes
    Shimano MT420 Hydraulic Disc
  • Rotors
    203mm Front /180mm Rear
  • Wheels
    RaceFace AR 30c, Tubeless Ready
  • Tyres
    Maxxis Assegai, 2.50", 60TPI, 3CG, EXO+, TR, MaxxGrip
  • Seatpost
    OC Mountain Control MC21, 31.6mm, Dropper
  • Seatpost Lever
    Shimano SL-MT500 I-Spec EV
  • Saddle
    Fizik Terra Ridon X5, 145mm
  • Grips
    OC Lock On
