Frame
SLY 6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Shock
Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Fork
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Motor
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery

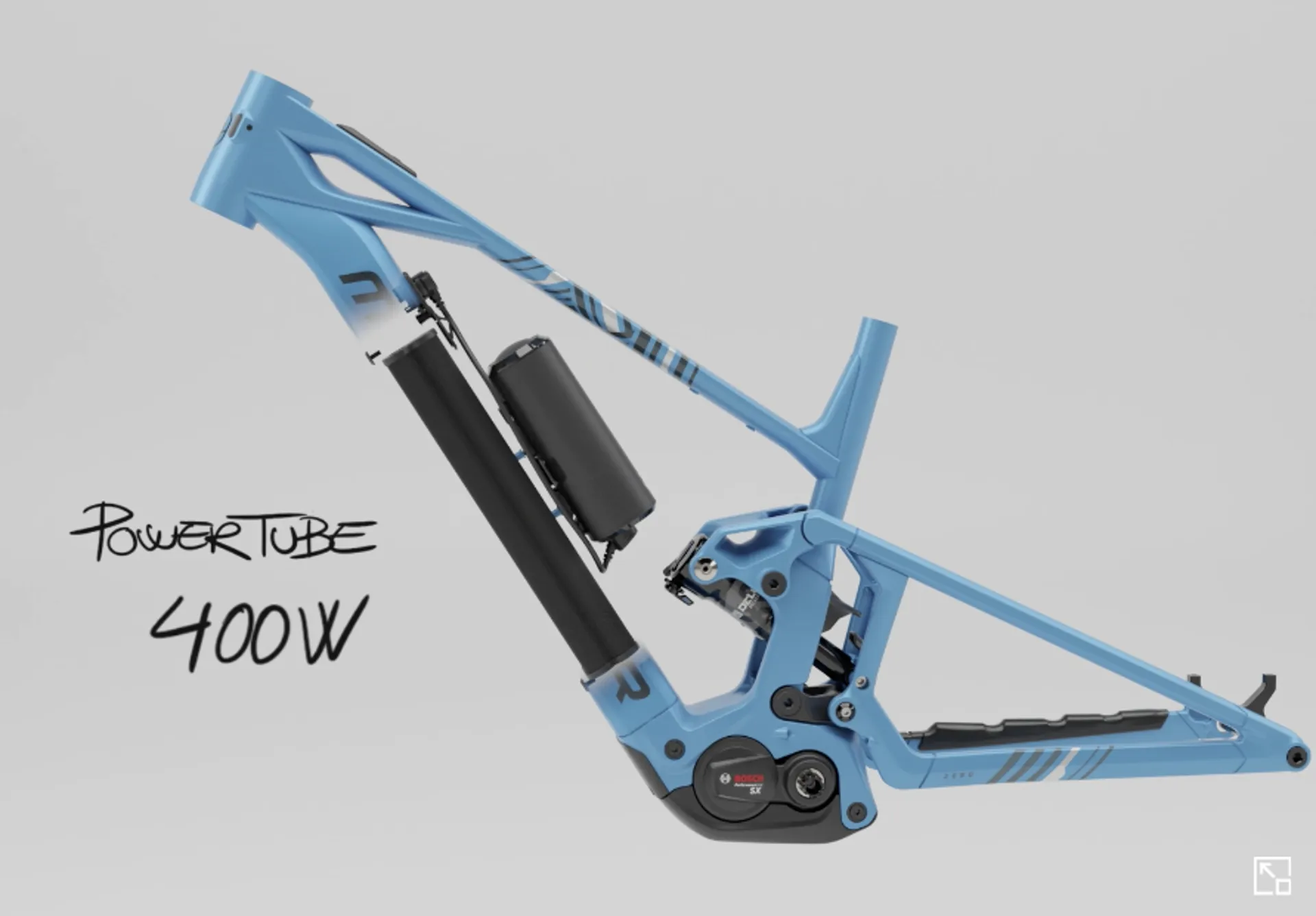

Bosch Compact Powertube 400Wh
Display
Purion 400 / Bosch Mini Remote / Bosch System Controller
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Chainring
SRAM X-Sync 2 Eagle, 34T, steel, narrow-wide, 104 BCD
Crank
e*Thirteen Helix Core E*Spec Plus, 160mm
Shifters
SRAM Eagle AXS Pod MMX, 12 Speed
Cassette
SRAM XS-1275, 10-52T, T-Type, 12 Speed
Rear derailleur
SRAM GX Eagle AXS, T-Type, 12 Speed
Chain
SRAM GX Eagle T-Type, 12 speed, Powerlock
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore
Stem
OnOff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Brakes
SRAM Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor
Wheels
Mavic E-CrossTrail SL, 29" Boost, 30mm internal width, hookless, tubeless ready, 28 spokes, Front Boost 15x110mm, Rear Boost 12x148mm
Front Tyre
Maxxis Minion DHF, 29x2.5", WT, tubeless ready, 3C MAXX GRIP, EXO+ protection, 60TPI, folding bead
Rear Tyre
Maxxis Minion DHR II, 29x2.5", WT, tubeless ready, 3C MAXX TERRA, EXO+ protection, 60TPI, folding bead
Seatpost
OnOff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing
Saddle
Fizik Terra Aidon X5, 145mm
Grips
Onoff Forest, CNC lock-on, 135mm
