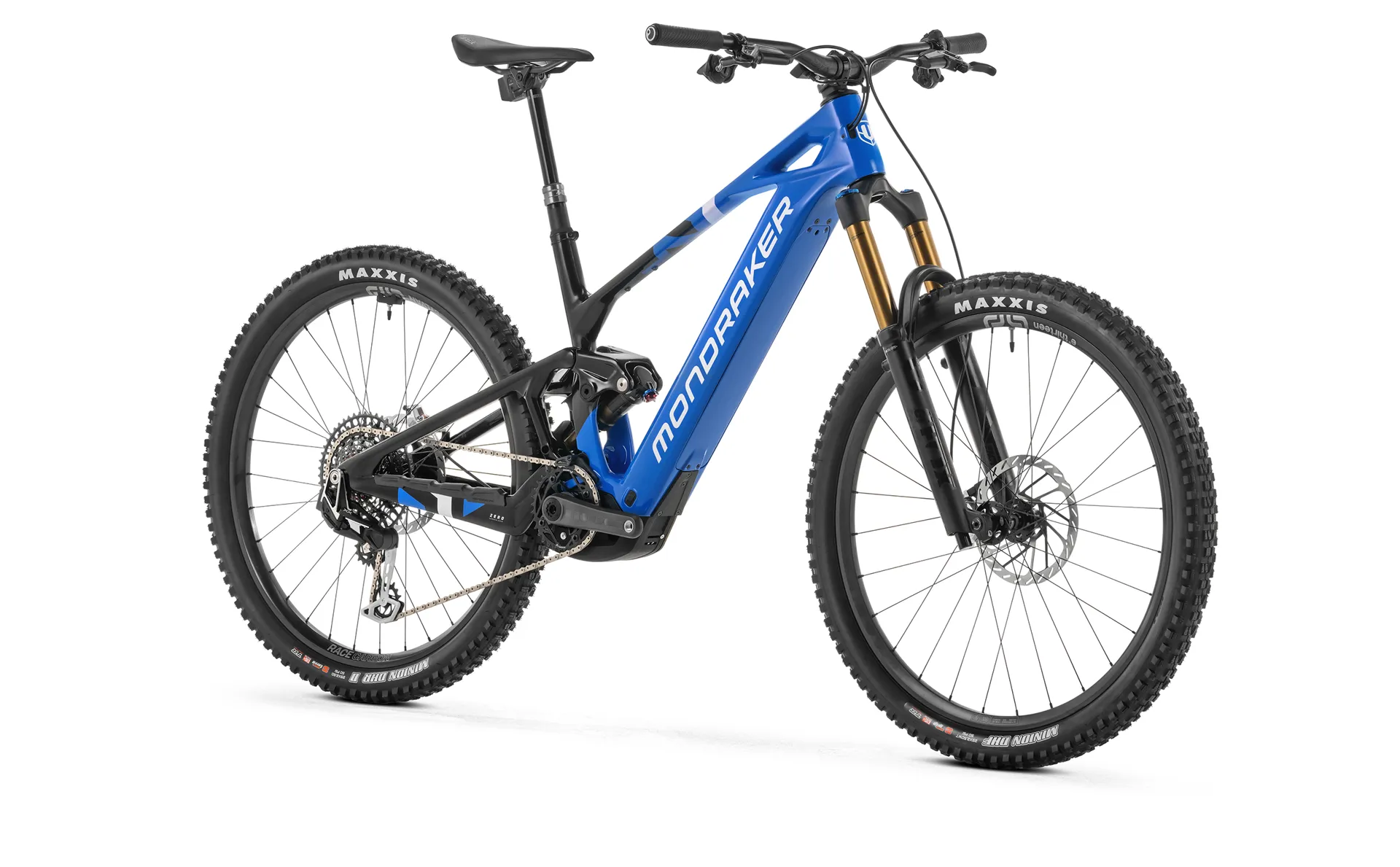

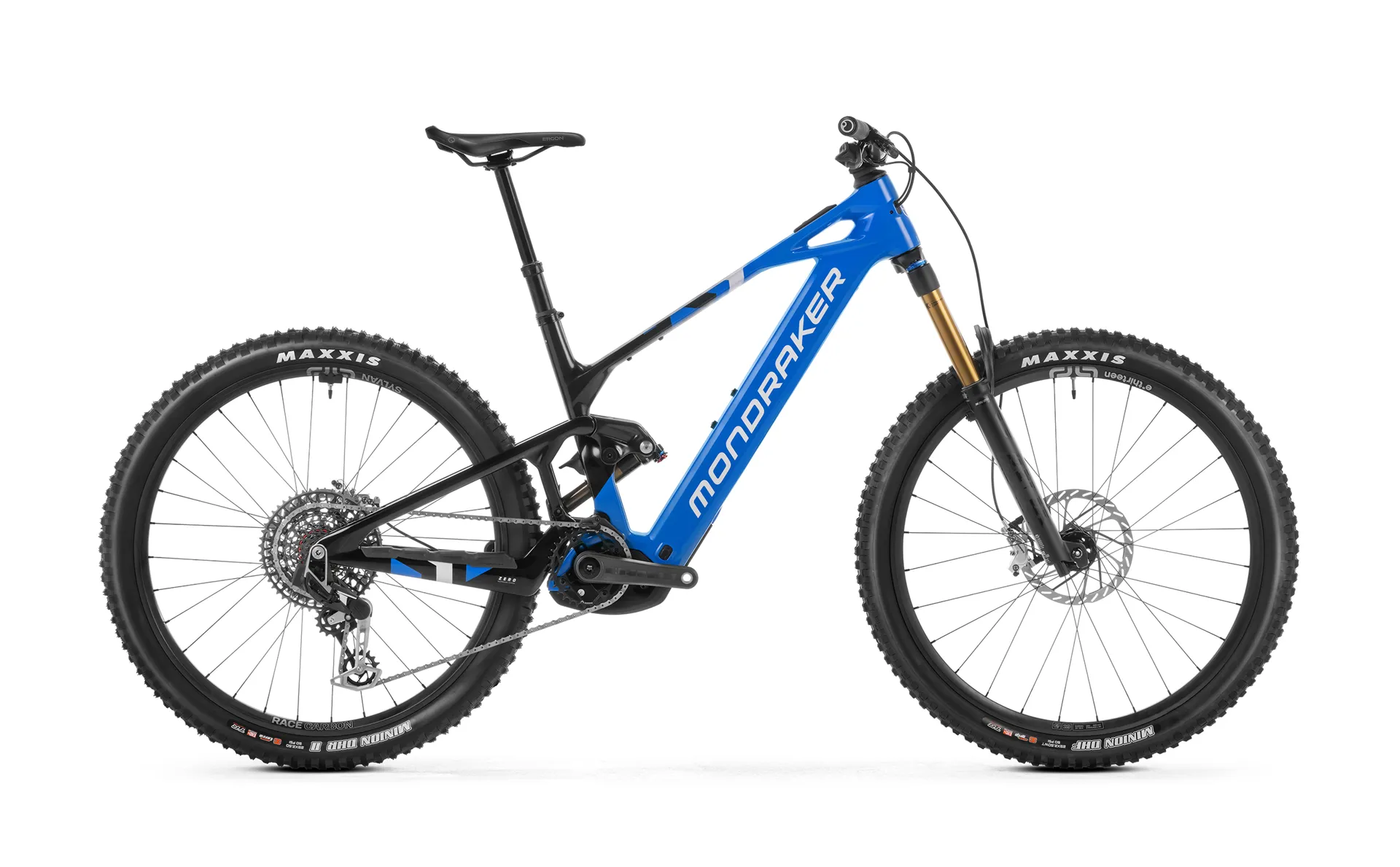

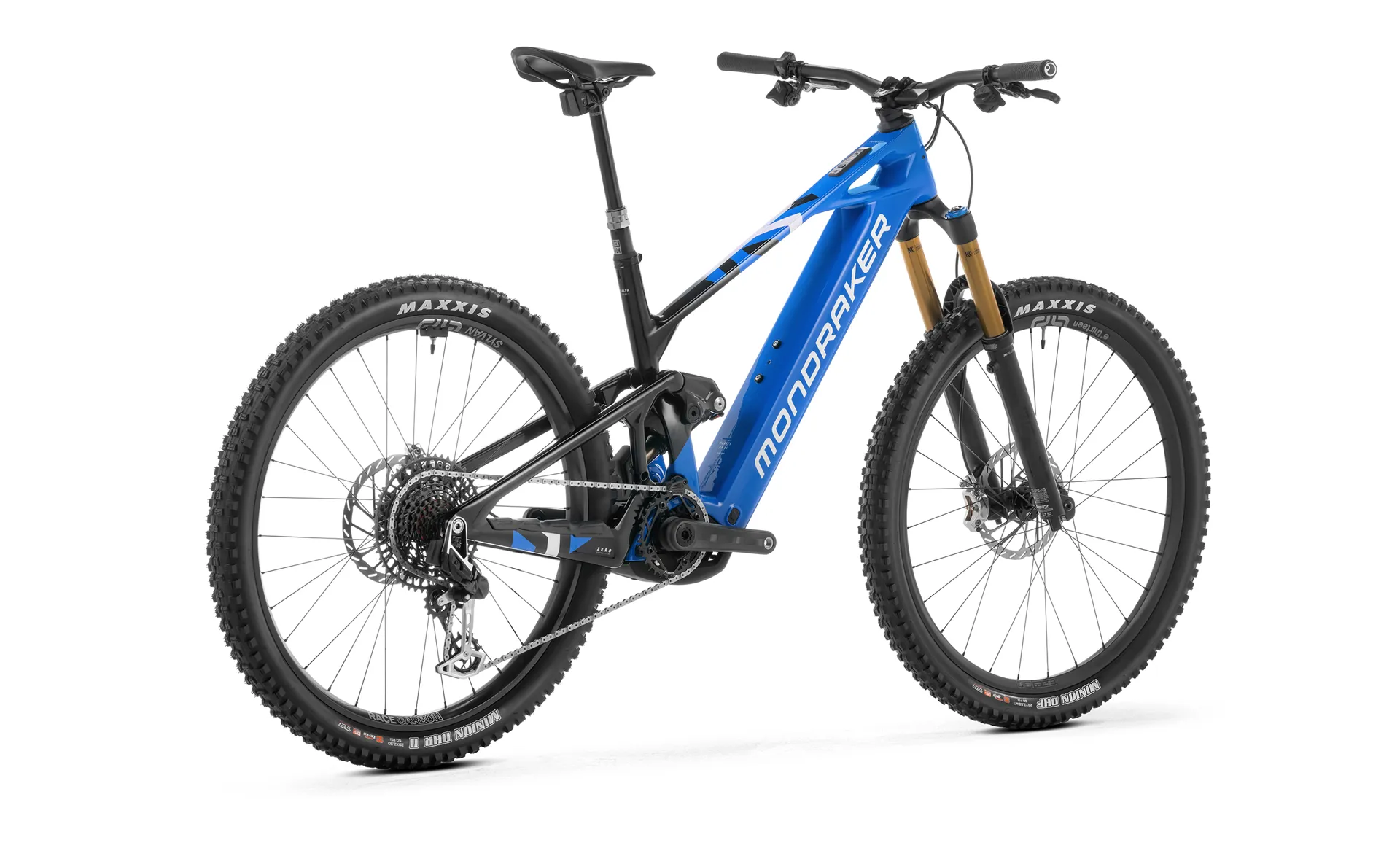

2025 Mondraker Crafty Carbon RR SL Electric Mountain Bike Carrera Blue

Season:2025

Brand:Mondraker

Code:010.2536


The game is over, welcome to a new generation of authentic e-Enduro. It’s time to present the latest evolution of the Crafty Carbon. It’s time to renew the most successful e-Bike Mondraker has ever made to make it more CRAFTY than ever before. We’ve kept the unmistakable identity, increased the performance, the agility and the pedalling assistance. Fitted with Bosch’s revamped CX Performance motor together with the new, more efficient, lighter and removable 800Wh and 600Wh batteries.

FIVE BUILDS: EVERY TYPE OF RIDER
At Mondraker we take a lot of pride in our builds and the new Crafty Carbon is no exception. Five builds with carbon fibre frames, with just the R and RR builds using a rear triangle made from Stealth Alloy aluminium.You’ll be taking your Crafty Carbon to the limit, so we’ve specced forks with beefy 38mm stanchions and 2.6” tyres on all builds except the RR SL which takes a 36mm fork and 2.5” tyres instead,focused on performance. All builds come with 4-piston brakes and 200/203mm discs and dropper posts from 140mm to 210mm depending on frame size.

MORE SIZES: MORE ADJUSTABLE
We’ve even optimised the size ranges. The new Crafty Carbon comes with optimised kinematics on the Zero Suspension System as well as the Forward Geometry, and with the addition of an intermediate ML size there are now 5 sizes to choose from. With this additional size, we’ve made the whole range more adaptable to an even wider range of body types so that there’s always a bike that’s right for you, a bike that offers a near-perfect fit. We’ve also optimised the swingarm length depending on frame size to keep things proportional and maintain that Mondraker ‘feeling’ throughout, regardless of frame size.
2025 Mondraker Crafty frame sizing

PERFECT COMBO: CRAFTY CARBON + NEW BOSCH CX
Our reference e-Bike would hardly be complete without the latest evolution of the Bosch CX motor. 100g lighter and smaller thanks to a more refined design architecture, the motor offers the same 85Nm of torque and 600W max power as before but with far better power delivery and control compared to previous models. Quieter overall when pedalling, mechanical rattles when riding downhill have also been eliminated so that you can ride faster and more discreetly than ever before.
2025 Mondraker crafty with Bosch CX motor

Technical Information
  • Frame
    Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles
  • Shock
    Fox Float Factory Kashima EVOL 185x55mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
  • Fork
    Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
  • Motor
    Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
  • Battery
    Bosch Powertube 600Wh
  • Display
    Purion 400 / Bosch Mini Remote / Bosch System Controller
  • Headset
    Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
  • Chainring
    SRAM X-Sync 2 Eagle, 34T, T-Type, steel, narrow-wide, 104 BCD CL55
  • Crank
    e*Thirteen Helix Race Carbon E*Spec Plus, 160mm
  • Shifters
    SRAM Eagle AXS Pod MMX, 12 Speed
  • Cassette
    SRAM XS-1295, 10-52T, T-Type, 12 Speed
  • Rear derailleur
    SRAM XX Eagle AXS, T-Type, 12 Speed
  • Chain
    SRAM XX Eagle T-Type, 12 speed, Powerlock
  • Handlebar
    Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore
  • Stem
    OnOff S9 30mm 0º, Full CNC, 31.8mm barbore
  • Brakes
    SRAM Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor,
  • Wheels
    e*thirteen Sylvan Race Carbon IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, Front Boost 15x110mm, Rear Boost 12x148mm
  • Front Tyre
    Maxxis Minion DHF, 29x2.5, tubeless ready, 3C MAXX GRIP, EXO+ Protection, 60TPI, folding bead
  • Rear Tyre
    Maxxis Minion DHR II, 29x2.5, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 60TPI, folding bead
  • Seatpost
    RockShox Reverb Stealth AXS, 31.6mm, S size: 340x125mm, M size: 390x150mm, ML size: 440x170mm, L size: 440x170mm, XL size: 440x170mm
  • Saddle
    FIZIK Vento Argo 00, Carbon, 150mm
  • Grips
    OnOff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Sizing Information
2025 mondraker Crafty geometry
