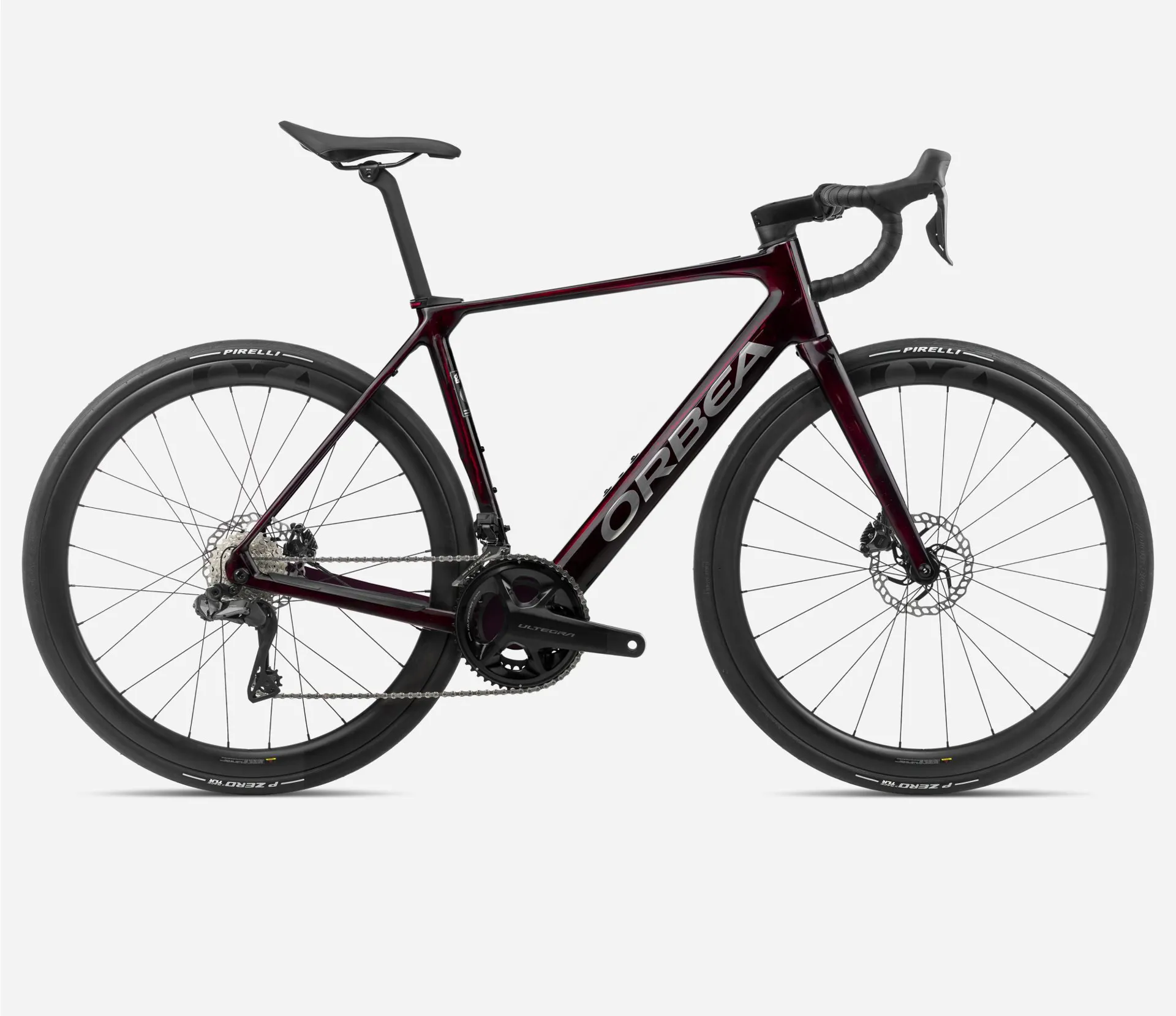

2024 Orbea Gain M20i Electric Road Bike in Wine Red Carbon/Titanium

Season:2024

Brand:Orbea

Code:R319TTCCCF

THE MANY FACES OF JOY - Rider and bike working in perfect synergy, you are breathing hard and your heart is pumping but you are in control and having fun. This isn't about riding faster, it isn't even about riding further, this is just about having more fun each and every time you ride.

Features:
  • 350WH Downtube - Investing the weight savings we made with the new gain in a bigger battery allows us to increase the range and reduce the overall weight simultaneously. That means you can pretty much forget about the battery level unless you plan on climbing more than 4000m. If this is not enough, you have the option to add an additional e185Wh Ranger Extender battery to go even further.
  • More Capable Than Ever - Clearance for 35mm tyres means that gain matches your vision of e-road, even if that goes further than tarmac and onto some gravel.
  • ICR PLUS - Cables are carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and are optimized for both traditional and electronic shifting systems
Technical Information
  • Frame
    Orbea Gain Carbon OMR monocoque structure / Integrated Seat clamp with STVZO light / ICR cable routing / Thru Axle 12x142mm rear / thread M12x2 P1 / Flat Mount disc / 700x35 max tyre / BB386 EVO / Mahle X20 AMC plug
  • Fork
    Gain OMR carbon fork / 700x35 max tyre / Flat Mount disc / Thru Axle 12x100mm / thread M12x2 P1
  • Headset
    FSA 1-1/2" Integrated Aluminium Cup
  • Crankset
    Shimano Ultegra R8100 / 34x50t
  • Shifters
    Shimano ST-8170
  • Cassette
    Shimano Ultegra R8100 / 11-30t / 12 Speed
  • Rear Derailleur
    Shimano Ultegra Di2 R8150 / 12 Speed
  • Front Derailleur
    Shimano Ultegra Di2 R8150
  • Chain
    Shimano M8100
  • Handlebar
    OC Road Performance RP10-R Carbon / Rise: 15 / Reach: 70 / Drop: 125
  • Stem
    OC Road Performance RP10 / -8º
  • Brakes
    Shimano R8170 Hydraulic Disc
  • Wheels
    Carbon 42 / Tubeless / 21c
  • Tyres
    Pirelli P ZERO Race / SmartEVO / TLR / 700x30c
  • Front Wheel Axle
    Orbea Thru Axle 12x100mm / M12x2 P1 Lite
  • Rear Wheel Axle
    Orbea Thru Axle 12x142mm / M12x2 P1 Lite
  • Seatpost
    OC Performance XP10-S Carbon / 27.2mm / Setback: 20mm
  • Saddle
    Fizik Aliante R5
  • Front light
    Rear position light / on saddle clamp / COB LED / On/Off / 12 Lumen / STVZO
  • Handlebar Tape
    Orbea Anti-Slippery/Shock Proof
  • Motor
    Mahle X20 Hub Motor / ALC
  • Battery
    Mahle iX350 / 36V / 353Wh
  • RANGE EXTENDER
    Mahle Range Extender e185Wh (Optional Extra £439)
  • Display
    Mahle Pulsar One / monochrome / ANT+ / LEV
  • CHARGER
    Mahle Active Charger up to 4A
  • Remote
    Mahle ONE Head Unit (BT/ANT+)
  • Remote2
    Mahle Handlebar Dual eShifter
